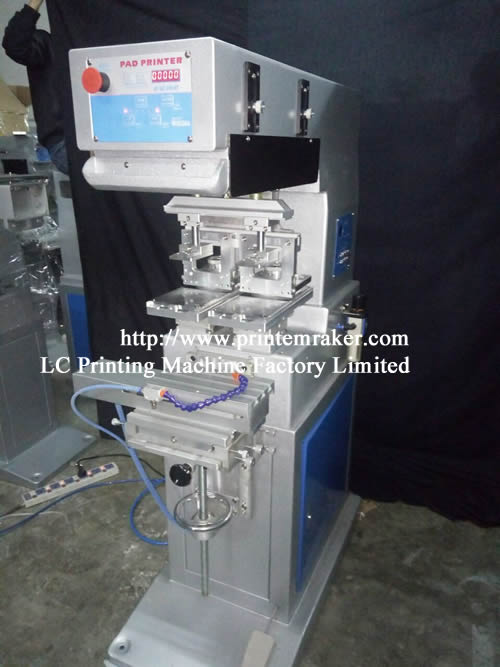

Large Printing Size Ink Cup Pad Printing Machine

Large Printing Size Ink Cup Pad Printing Machine

Specifications:
1. Model No:EP2S-150TL
2. Printing Colors: 2
3. Plate area: 130*300mm
4. Max Printing area: 120*130mm

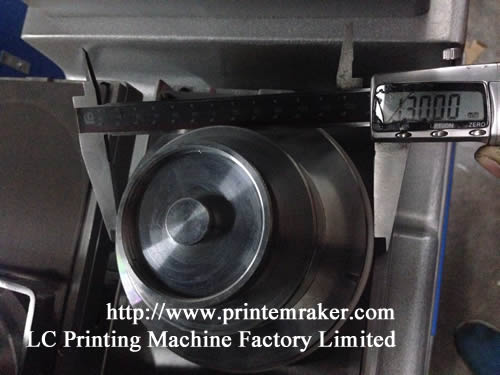

    Ink Cup Diameter: 130mm

5. Max printing speed: 1400PCS/H
6. Printing Wattage: 220V/ 50Hz 110V/60Hz
7. Air pressure: 0.4-0.6Mpa
8. Machine size: 90*50*150cm
9. Packing Size:100*60*160cm

This Pad Printer is fited pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.

Function
1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.

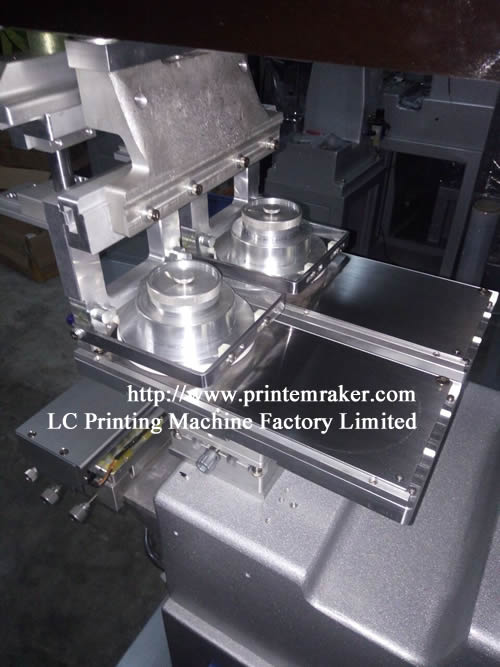

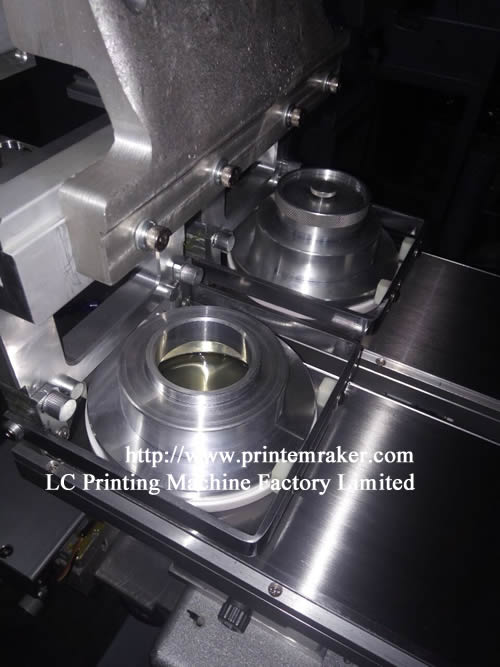

7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.

Price Terms:FOB GuangZhou
Packing:Wooden Case
Standards Certificate︰ CE
Application area:toies, pens, Cosmetics package box, hardware Parts.
Main Parts:Airtac MADE BY TAIWAN
H.S.Code:84439000
