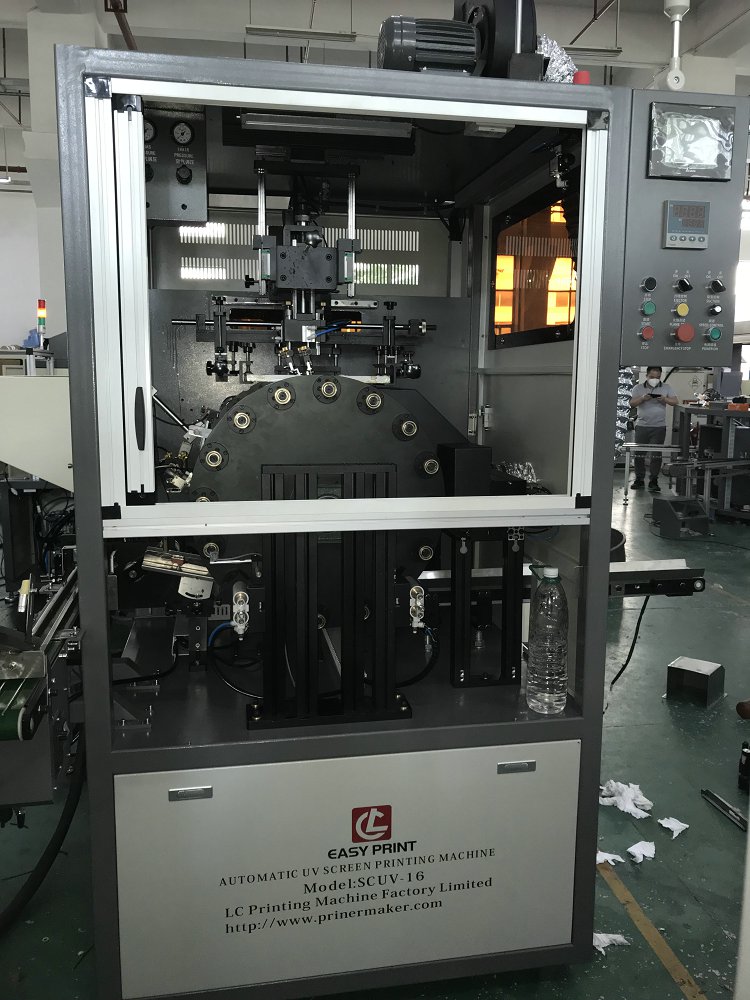

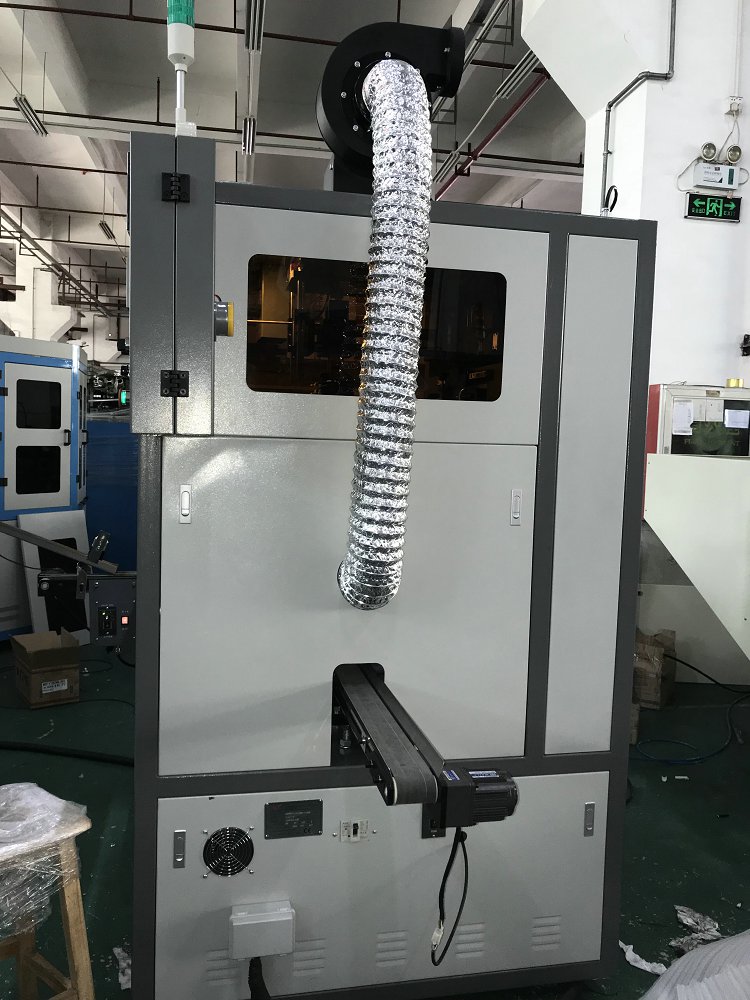

Automatic UV Silk Screen Printing Machine with Optical Registration System model SCUV-16C

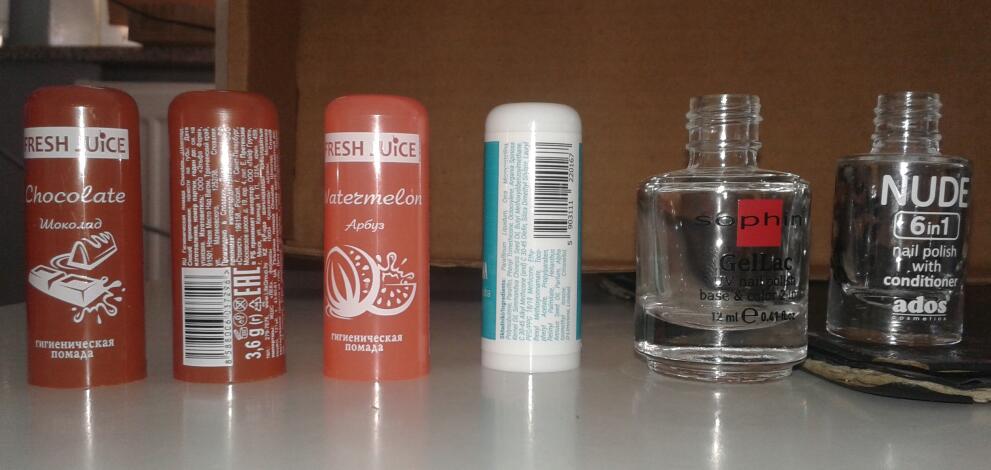

This machine is designed for both caps and bottles silk screen printing machine, it is attached automatic feeding system, flame treatment, screen printing, UV curing and offloading system.

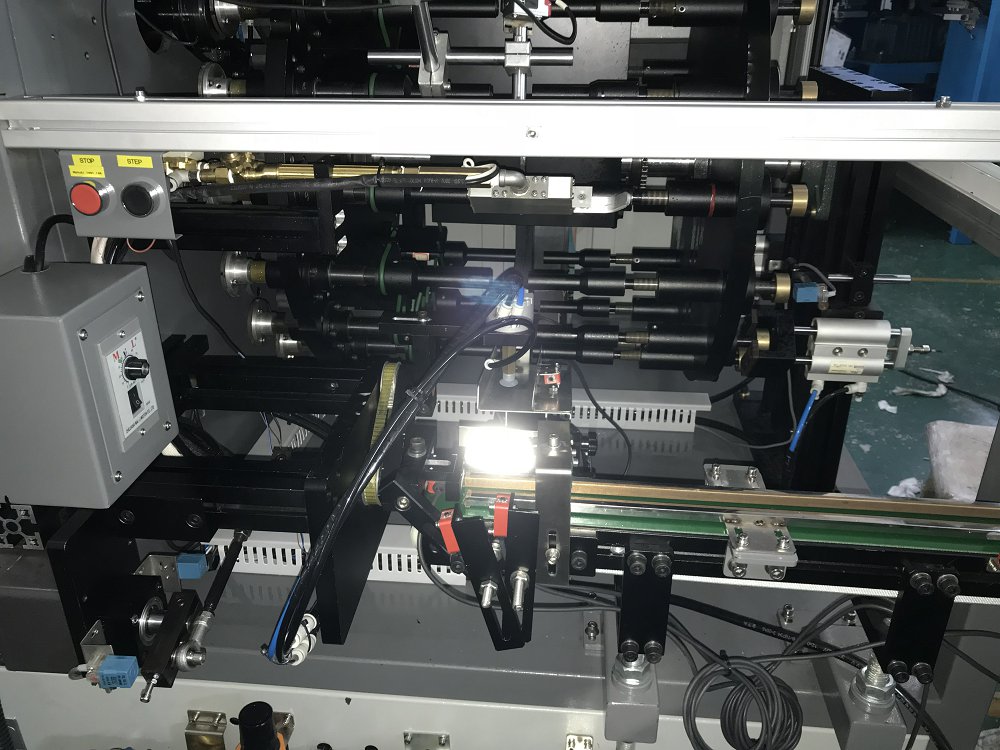

The optional sensor is allowing you to print second color by optical registration. The tolerance is at 20C.
Parameter:
1: Max.Print Size: Dia20-45MM;Height:25*70MM
2: Speed: 55-60pcs per minute
3: UV curing rate: 5KW (LED curing system optional)
4: Machine N/G Weight:1600kg/1800kg
5: Air Pressure: 5-7 Bar
6: Power Rate: 380V/3P 50/60HZ 13KW
7: Machine Dimension:2150mm*1480mm*2700mm (L*W*H)
