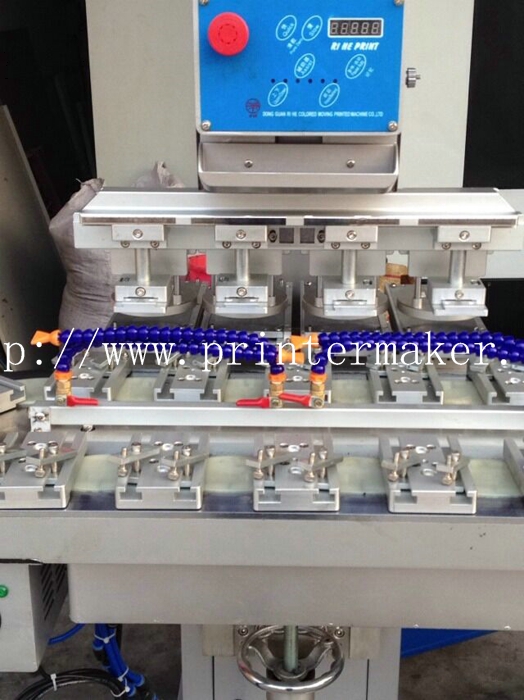

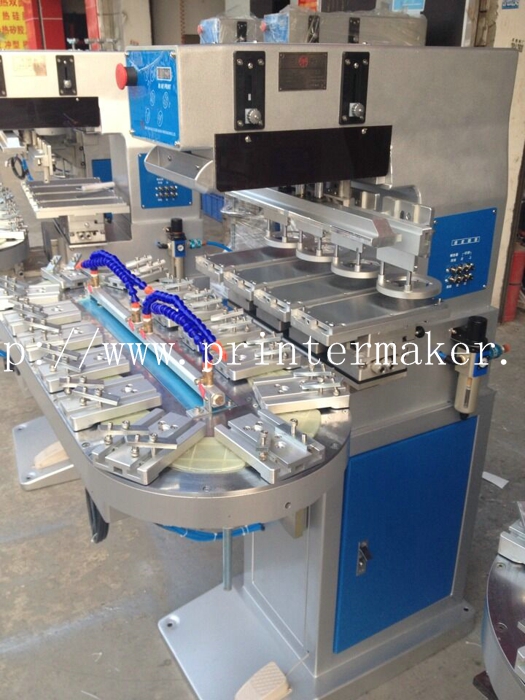

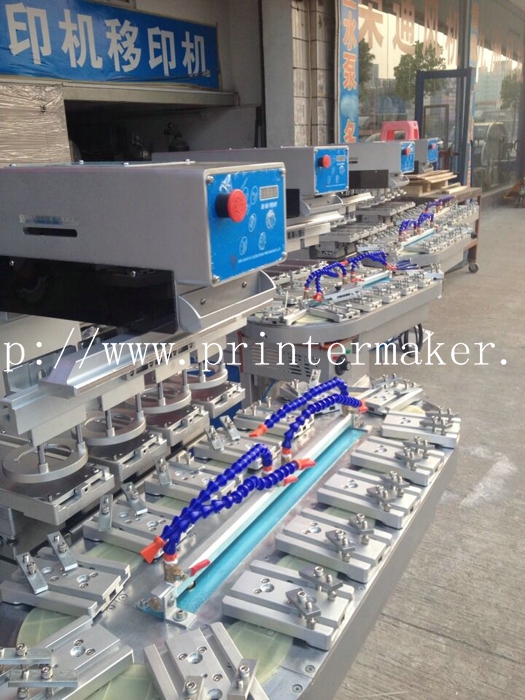

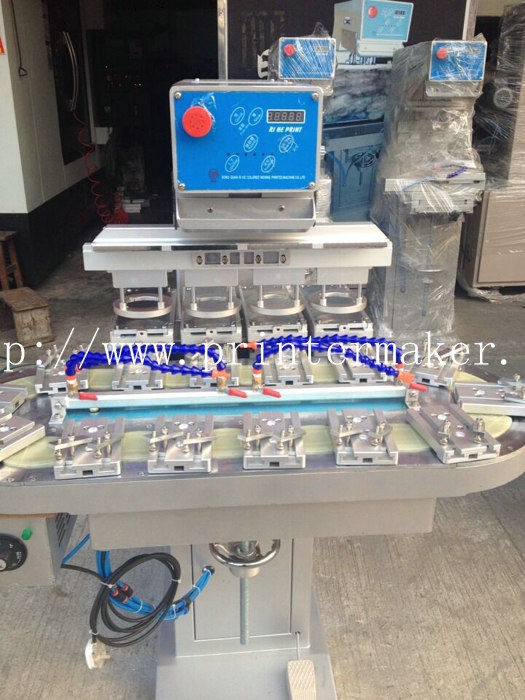

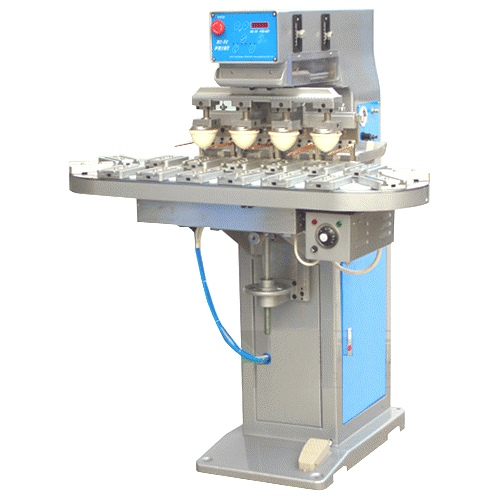

Economy 4 Color Ink Cup Pad Printing Machine with Carouse

Economy 4 Color Ink Cup Pad Printing Machine with Carouse

Economy 4 Color ink cup Pad Printing Machine with Carouseensures that is environmental, safe, it is comply with CE Starderand, ease operateing, to consume ink that frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature.
It is to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.

Economy 4 Color Ink Cup Pad Printing Machine with Carouse

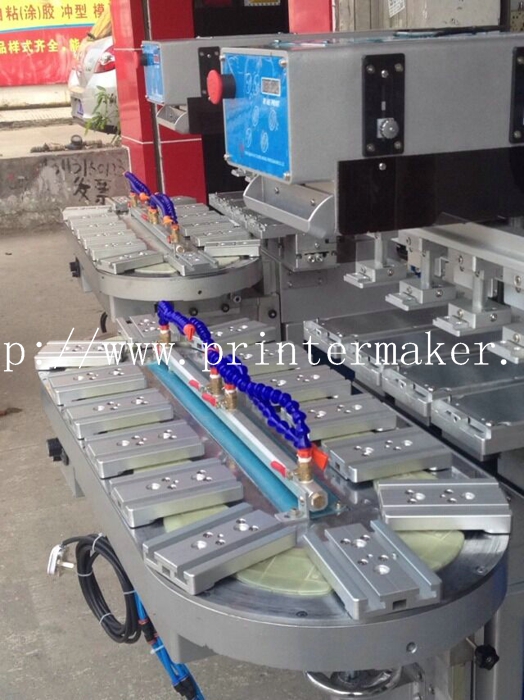

1. Four color printing with conveyer;
2. Microprocessor control with numerical display leads to easy operation;
3. Automatic 5-digit counter installed;
4. Coin aluminium structure frame, the machine is light and sturdy;
5. The speed and the vertical stroke of the pad can be adjusted independently;

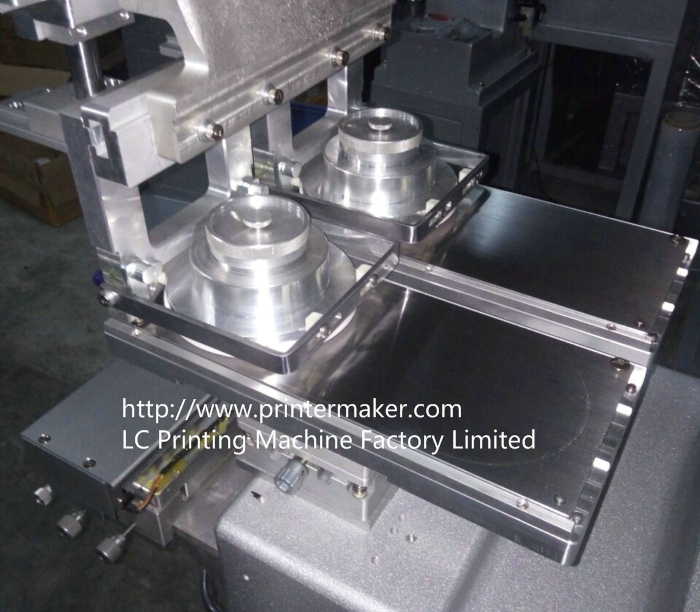

6. With sealed cup to protect operating envirment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9. 4-color, 3-color, 2-color, 1-color printing available,

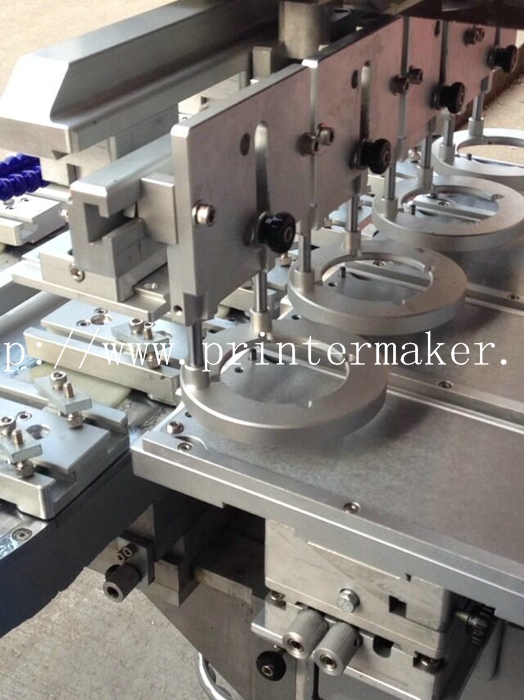

10. The four ink cup can be independently adjusted for color registration;
12. With air jet for fast drying;

Model: EP4C-150T
1. Max. Plate size: 100*250mm
2. Max. Worktable area: 90x125mm ; Conveyor with 16pcs of working table

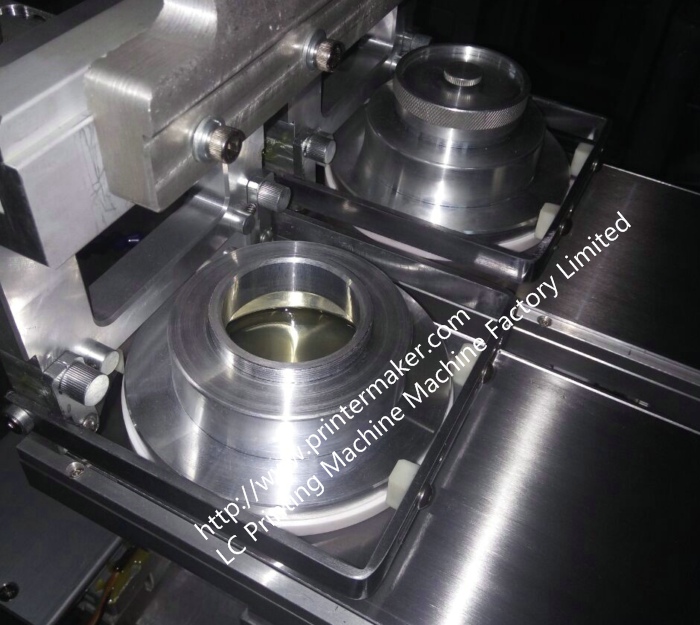

3. Sealed cup diameter: 90mm
4. Max Printing area: 80*120mm
5. Max. Printing speed: 1800PCS/h
6. Printable colours: 4
7. Air consumption: 154Litre/min(6bar)
8. Machine Size:95x110x138cm
9. Machine Weight: 240Kg
10.Packing Size:122*110*150cm
11.Gross Weight:320KG

Model: EP4C-200T
1. Max. Plate size: 100*250mm
2. Max. Worktable area: 90x125mm ；Conveyor with 16pcs of working table
3. Sealed cup diameter: 90mm
4. Max Printing area: 80*170mm
5. Max. Printing speed: 1800PCS/h
6. Printable colours: 4
7. Air consumption: 154Litre/min(6bar)
8. Machine Size:105x125x145cm
9. Machine Weight: 240Kg
10.Packing Size:122*135*155cm
11.Gross Weight:320KG
