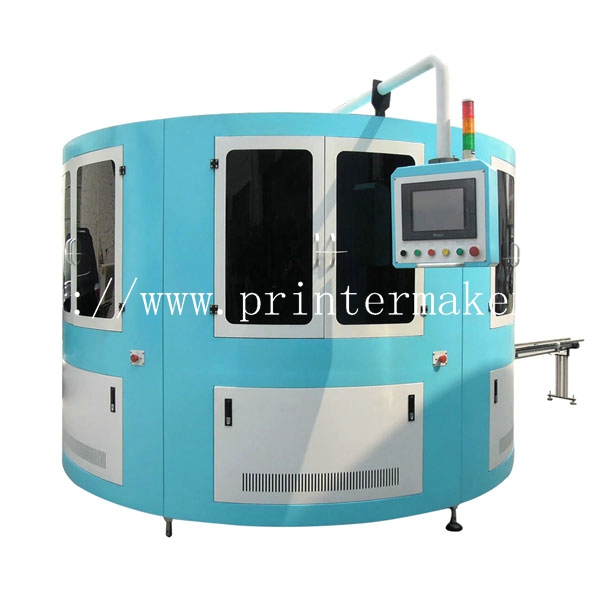

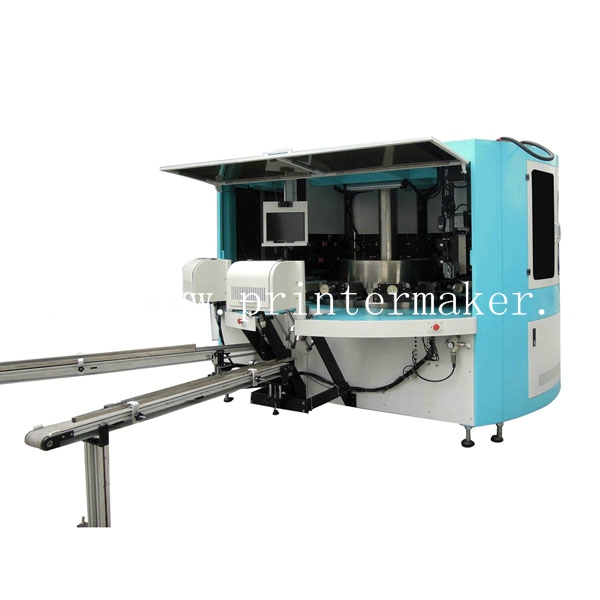

Rotary 5 Color Automatic Glass Bottle Screen Printer

Rotary 5 Color Automatic Glass Bottle Screen Printer

Product Name: Rotary 5 Color Automatic Glass Bottle Screen Printer

Model: SGL-105

Applications:

This Automatic Glass Bottle Screen Printer is 5 color CNC Screen Printing Machine.

It can print all shapes of glass containers.

It is suitable for glass bottle or container printing with thermoplastic ink,UV ink or LED ink.

The CNC screen printer is controlled by high accurate indexer,fully servo driven system.

Vision system and mechanical registration optional

Parameters:

1:Max.Printing size(Bottle Outer Dia.): φ30mm--φ110mm　

2:Speed: 2700-3000 pcs/hr

3:Bottle Length:60-330mm

4.Air Pressure: 0.6-0.7 Mpa

5.Liquefied Gas: 0.15 Mpa

6.Power: 380V 50Hz 30Kw

7.Machine Size: φ1.8m

Features:

1.Automatic loading and unloading system with multi axis servo robot

2.Indexing table system with high accuracy

3.Automatic printing system with all servo driven: printing head,mesh frame,rotation,container up/down

 all driven by servo motors.

4.All tooling with individual servo motor driven for rotation

5.Fast tooling changeover time.All parameters automatic setting by touch screen. .

6.All Ethercat servo motors with industrial PLC control & touch screen operation system, it is available for future

  maintenance and   program upgrading by romote controlling.

Options:

1.Camera vision system

2.Flame treatment system for best adhesion on glass for UV ink printing

3.Electrode UV system from Europe for SGL-103 to 05 colors machine. SGL-106 to 08 can only be

  equipped with heating system for thermo plastic ink due to the packing size.
