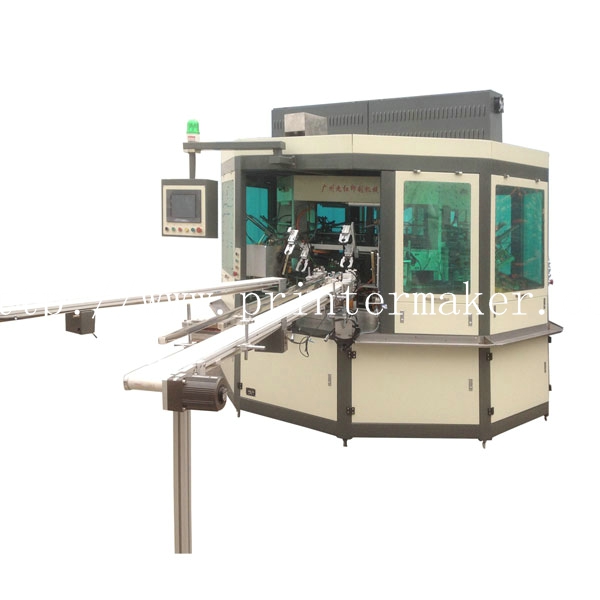

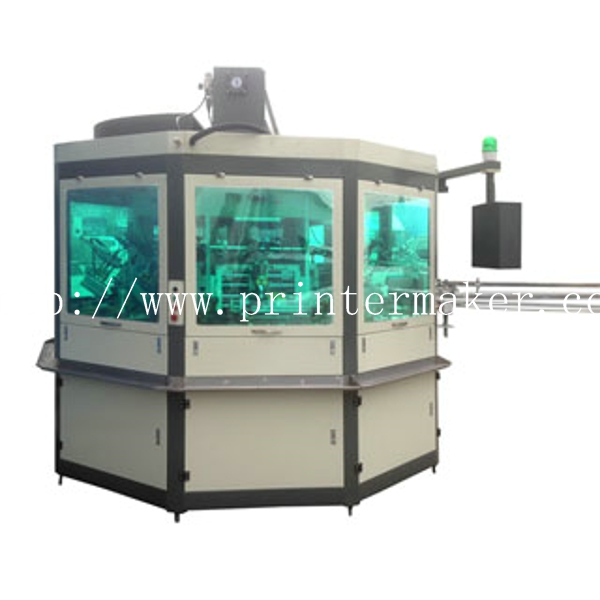

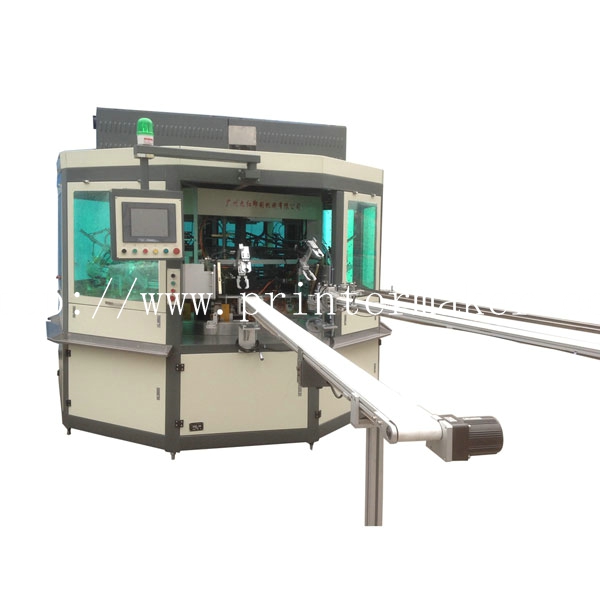

Product Name: Full Servo 7 Color Automatic Glass Bottle Screen Printer
Model: SGL-07
Automatic Glass Bottle Screen Printer is special for printing 7 colors on the surface of cylindrical,
oval and square glass bottles. This machine is special for the wine bottle industry’s printing.
Parameters:
1:Max.Printing size(Bottle Outer Dia.): φ30mm--φ100mm
2. Oval Bottle Length:50-320mm; Width: 25-125mm
3:Speed: Round 2700 pcs/hr; Oval 1800 pcs/hr
4.Air Pressure: 0.6 Mpa
5.Power: 380VAC 35Kw
6.Machine Size(L*W*H): 3000X5000(with loading and unloading conveyor )X 2600mm
Features:
Full Servo system.
Using high temperature inks.Strong adhesion(you can choose UV inks,too) Whole circle printing
on the oval bottle surface.
One to four surface printing at one time on the quadrate bottles.
Fast speed printing, Overprint is perfect precision
Because of the machine size is too big and difficult to be shipped.
So we suggest you our Glass Bottle Screen Printing Machine SGL-03 to connect with our
Glass Screen Printer SGL-04 to print your 7 color Bottles, containers etc.
