Products

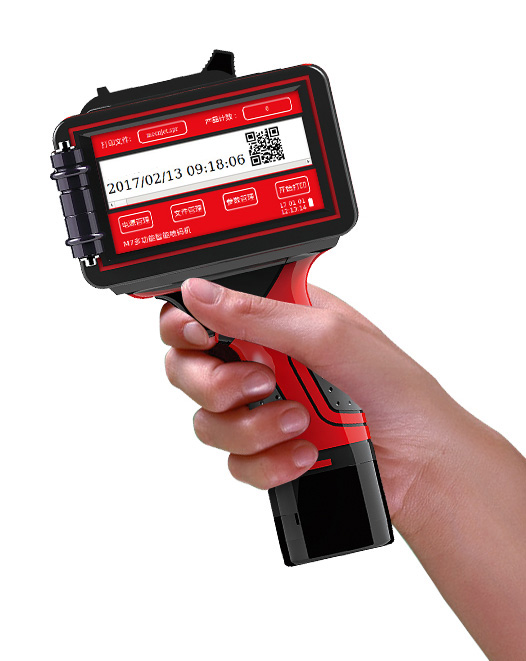

Packaging Coding & Marking Mini Portable Handheld Inkjet Printer

Model: M7

Categories: Custom Solutions »

Description:

Packaging Coding & Marking Mini Portable Handheld inkjet Printer

Parameters:

Product Name	Packaging Coding & Marking Mini Portable Handheld Inkjet Printer
Key Words	Date printing machine, Expiry date printing machine, Hand-held ink-jet printer, Inkjet coding machine, ink cartridges, inkjet coding machine, handheld inkjet printer, industrial inkjet printer, high resolution inkjet printer, expiry date printing machine

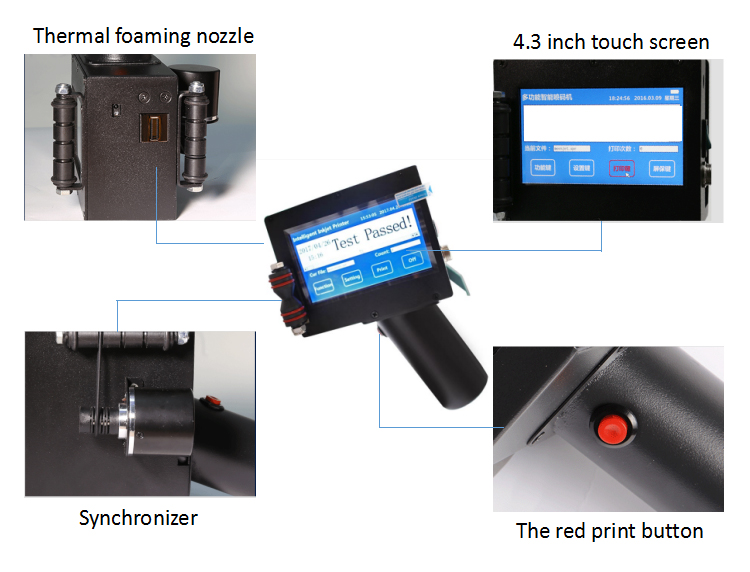

Shape Features	ABS+PC case, red and black, color touch screen
Dimension	14090240mm
CPU	Quard core 1.4 GHz
Definition	600PDI
Spray Nozzle	Thermal foaming inkjet 2.5
Printing Direction	Adjustable with 360 degree, meet all kinds of production needs
Printing Line	1-8 lines (adjustable)
Printing Height	1.2mm-12.7mm
Printing Distance	1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)
Printing Content	Chinese, English, number, date, time, QR code, bar code, picture
Application	Board, carton, stone, pipe, cable, metal, plastic, electronics, automotive parts
Printing Length	2000characters for each message, no limitation on length
Printing Speed	70m/min
Ink Type	Quick-dry environmental ink, water-based ink and oily ink
Ink Color	black, white, red, blue, yellow, green, invisible
Ink Volume	42ml(usually can print 800,000 characters)
Interface	USB, RS232, DB15, Photoelectric interface, Bluetooth 4.0, Wi-Fi
Voltage	DC16.8 lithium battery
Storage	the system can store more than 1000 mass (external USB make the information transfer in a free way)
Working Condition	Temperature:0 - 45 degree; Humidity: 10% - 80%

Print Fonts: High Resolution Printing Fonts
Printing symbols:Can print logos & pictures, the length unlimited.
Printing lines: 1 to 15 lines for English, or 1 to 8 lines for Chinese.
Printing character height:from 1mm to 18mm
Automatic Printing:Date, Time, Lot No, Shift No, Serial No. etc.
Message Memory:Could connect the outer devices by USB interface.
Text Length:Max. 200 characters per message
Serial No:1-9 variable sequential numbers.
Spray speed: Maximum speed at 35 meters per minutes, and the increase of the line will not affect the speed
Ink colors:Black, Red, White, Blue
Printing material : can print at the surface of metal, plastic, wood ,Aluminum paper, paper box ,construction material and so on.

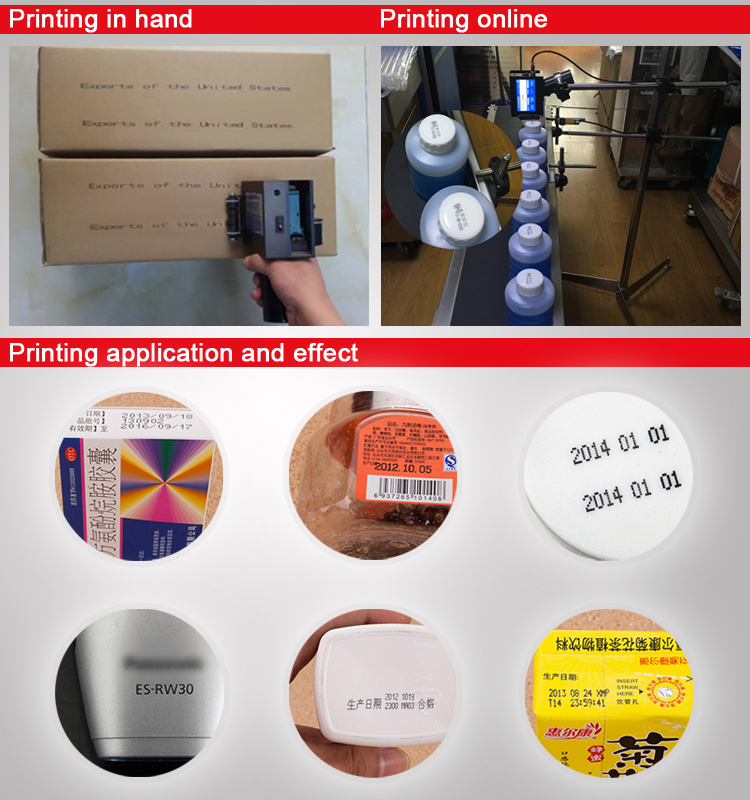

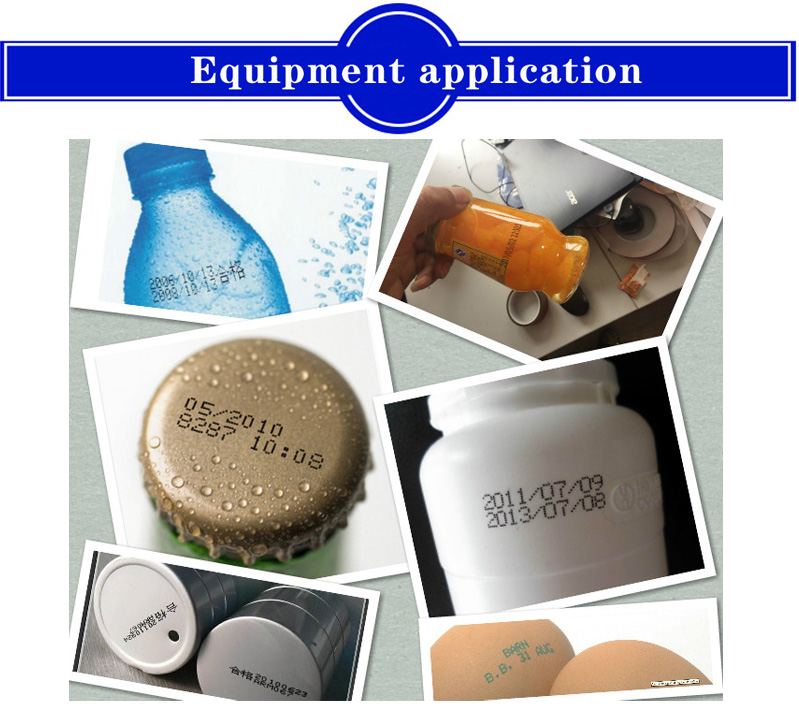

Applicable products:
used for package material printed with area code, date, Lot number. Suitable for package label of food, drink, medicine, chemical, cement and other industries. It
can be printed on porous surfaces (such as ordinary cardboard boxes, templates, textiles, etc.) and non-porous surfaces (such as bags, silver mirror, aluminum
mirror, glossy cardboard boxes, etc.)

Ink Cartridge:
Solvent-based or oil-based environmentally friendly ink cartridge. No need to use air source or Pump.
Interface:USB
Machine Weight:3 kg (Including cartridge).
Rated Power :
DC 14.8V Lithium battery could use 8 hours or stand by 20 hours.
Power:Average lower than 15W
