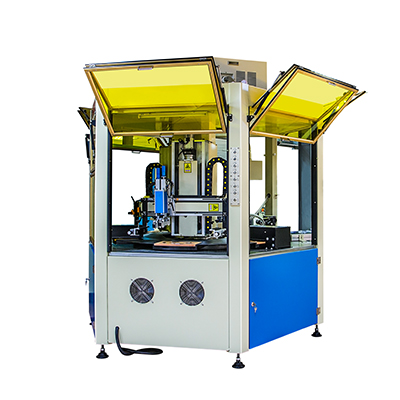

Auto 2 color ruler screen printer with dust clean system
Specifications:
Printing colors: 2
Max.printing size: 200x300mm
Max.frame size: 250x500mm
Indexer station: 8 stations
Max.printing speed:4800pcs/hr
Air pressure: 6bars
Power supply : 3phase, 380V, 50Hz
Power: 4.5KW
Dimension(LxWxH): 2000x2000x1800mm
Weight: 2000KG
Description:
1.Auto loading rack for 4 kinds of rulers, other racks optional
2.8 station indexer
3.Fixture with vacuum
4.PLC control, Touch screen display
5.Auto dust clean before printing
6.All servo motor driven: mesh frame up/down, printing, indexer, registration
7.Color registration tolerance: +0.05mm
8.Multi prints at the same time
9.LED drying after each color printing
10.Auto unloading belt with robot
11.Well safety protection with CE.
Application:
Straight rulers, right triangle rulers, regular triangle rulers, protractor.
Different rulers print at the same time or multi prints at the same time.
(Different solution with different loading system, unloading system and fixtures.
