Screen Printing Set With Hinge Clamps

Screen Printing Set With Hinge Clamps

This set is coposed of 2-3hinge clamps as the frame clamp,and there is gravity connectiong device combined with

the hinge clamps.This Set can overcome the shortcoming of the traditional hinge clamps.For example when we use

the traditional hinge clamps,we have to control the frame by hand ,then we just have one hand to change the

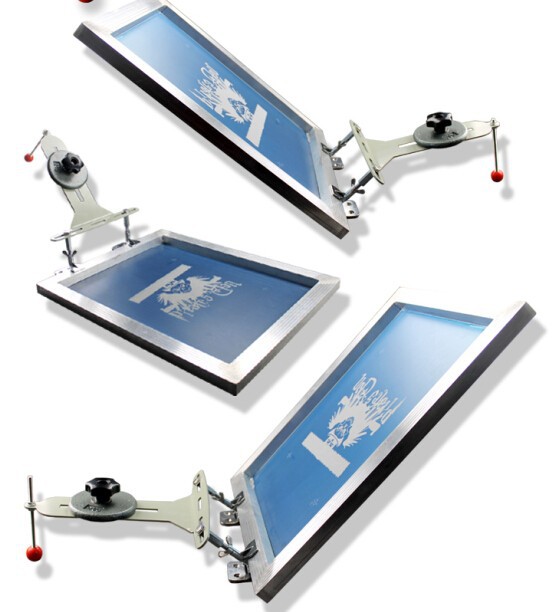

printing product,But when we use this set,we can make sure the screen frame at any angele within the lift,we

just press the screen frame gently when we need to print.

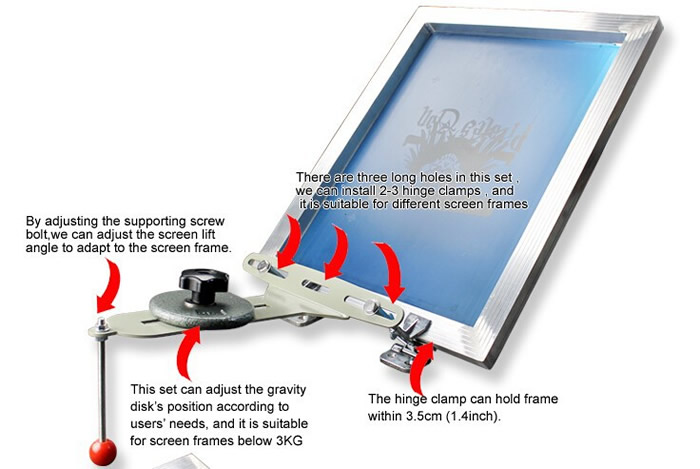

1.This set can adjust the gravity disk's postiton according to user' needs,and it is suitable for screen frames

below 3KG;the effect can almost reach the ordingary print machine ,especially suitable for those printing

beginners.

2.There are three long holes in this set,we can install 2-3 hinge clamps, and it is suitable for screen frames

with the width in 60cm(24inch0. If we use two sets,the width can be 160CM(63inch)

3.By adjusting the supporting screw bolt,we can adjust the screen lift angle to adapt to the screen frame.

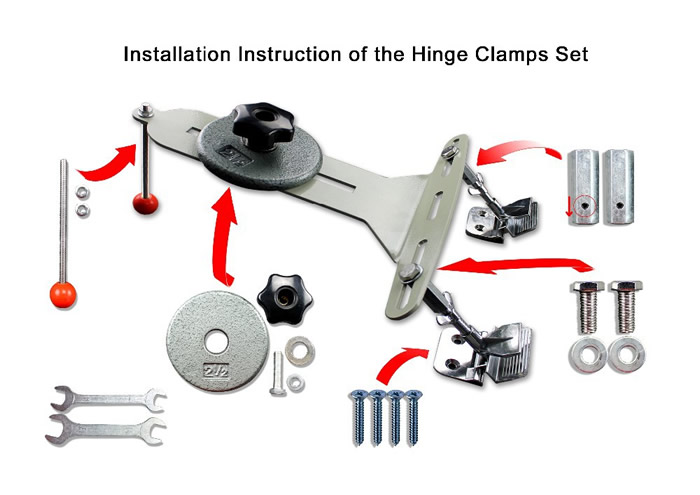

4.This set can be installed in the woode directly,and we just need to install the hinge clamp in the desk.

5.The weight:2.8KG(6.3lb) The package:36cm*33cm*8cm

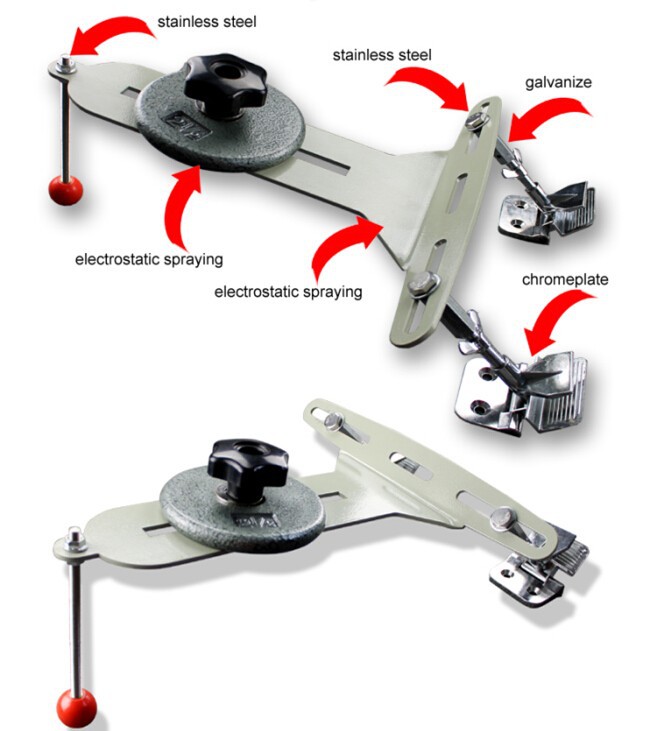

6.The main components of the set are stainless steel and electrostatic spraying materials.It is corrosion

resistance,no rust,and there are configuration installation tools,ver easy to operate.
