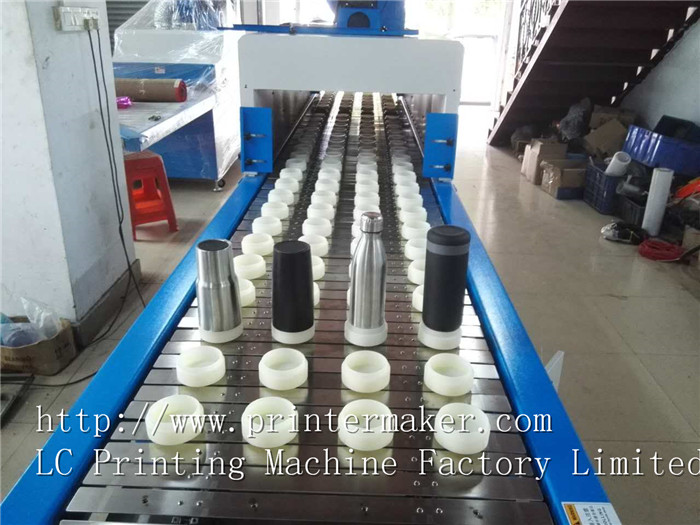

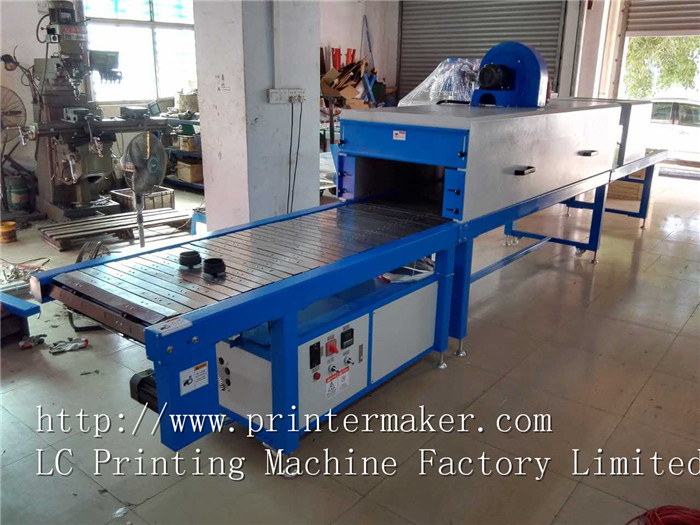

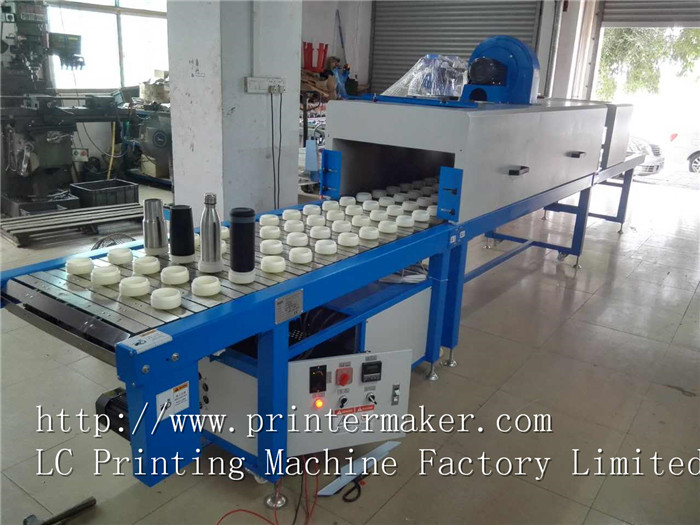

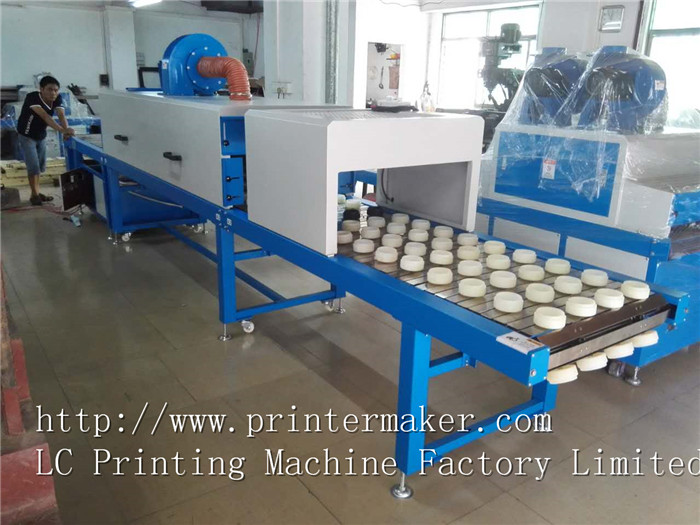

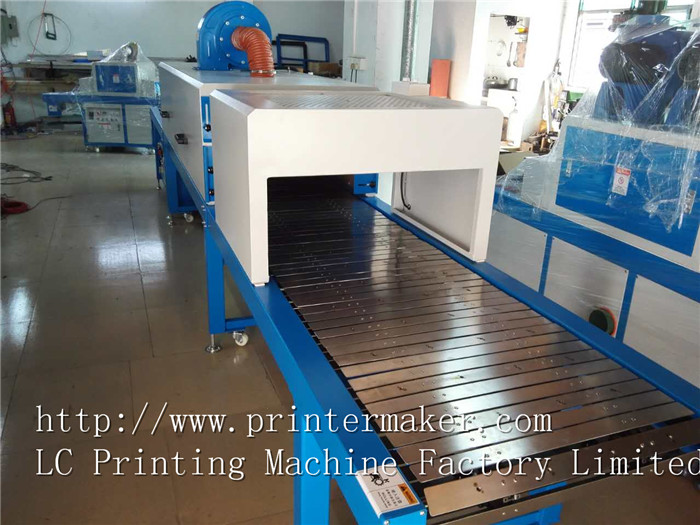

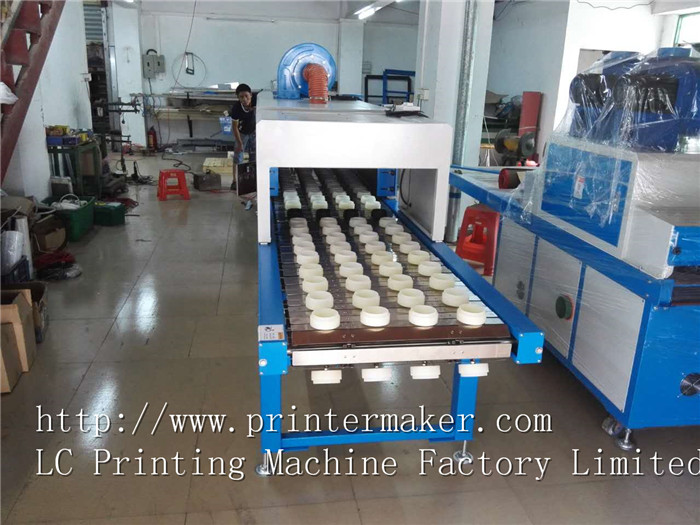

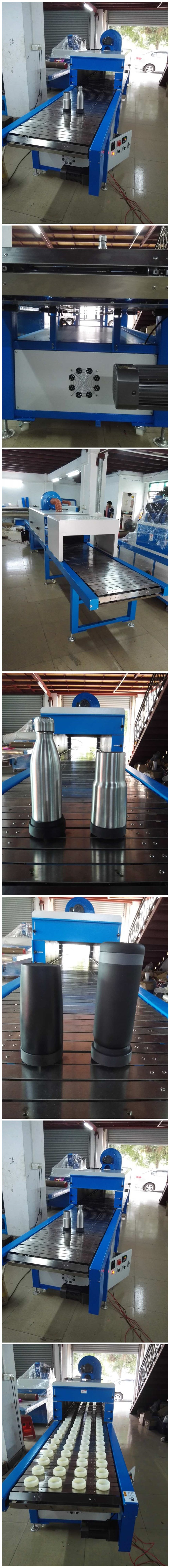

Infrared Drying Tunnel For Bottle Stainless steel conveyor with 4 lines of fixture
Technical Parameters:
1:Model No:M-650BO
2:Conveyer size: width: 650mm; Infeedlength:1800mm;
heating zone: 2500mm*1
zones;cooling zone:700mm+300mm
total length at 6.3 meters;
Max.infeed height at 550mm
3:Total wattage:12KW
4:Circulating air motor :750W@43CM height
5:Conveyer motor wattage:200W;velocity rate:50RPM,every 70 seconds
6:Heating temparature:0-200degree; Heating tube length:620mm*15pcs;tubes power rate: 450W
7:Conveyer Speed adjustment: Stepless 0-8meters/minutes; Stainless steel conveyor belt; mandrill in Telft materials for resisting of 200 degree maximum; the mandrill maximum height at 30CM height.
8:Machine dimension: 910mm width*6300mm length *1900 height(lxwxh)
9:Gross/Net weight: 1620KG/1100KG
10:Package: Wooden case
11:Automatic Grade: Manual
12:Warranty : 2years
13:Usage: Round,Oval and flat plastic or glass bottles
14: packing size:
1:95*260*195CM
2:85*205*93CM
3:85*188*93CM
