Full Servo Automatic Hot Foil Stamping Machine For Plastic Cosmetic Tube
Mode:AH-60240
Printing Size: Φ(16-60)*(50-240)
Printing speed: 50-80 pcs/min
Pressure: 5-7 bar
Net weight: 1500kg
Machine size: 355L*160W*180H(cm)
Voltage: AC380V 50/60Hz 15Kw
Features:
This equipment is adopted fully servo-control, with which is the technological innovation of the traditional pneumatic machine.
1. Faster operating speed: the operating speed could increase to 40% at 80PCS/Min comparing with the traditional machine.
2. Higher accuracy: the stamping accuracy could be controlled within 0.1mm, almost zero error executing order instructed by the presets parameter
3. More perfect effect: the hot-stamping head could be designed into 7 segments with different pressure according to the thickness of picture, which could perfect the picture.
4. More accurate position: the fully operating process controlled by the Vacuum adsorption to ensure the accuracy of the stamping after the left-and-right, forward-and backward position.
5. Intelligently dividend test: this machine sets with Qualified and unqualified channel, the unqualified products will be automatically sorted out from the unqualified channel.
6. Easier operation: Just need to change the channel position, touché and adjust the corresponding parameters to adopt the product with different channel diameter.

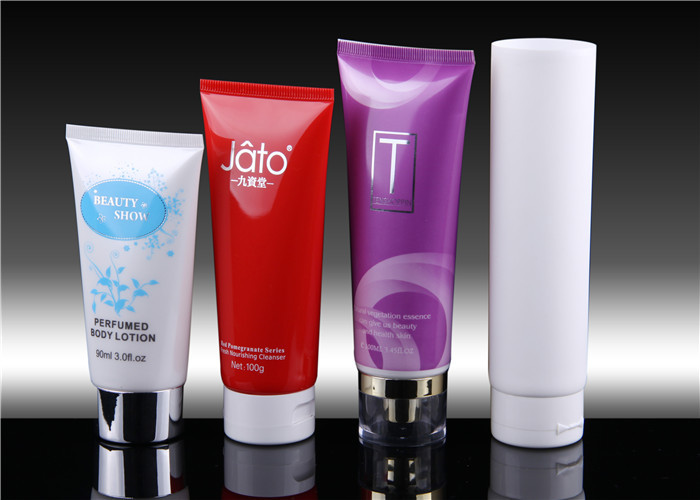

Printing Samples:
Parts Of Machine:
Auto Optical Registration System
Hot Stamping System
Auto Unloading System
