Automatic Hot Stamping Machine On Irregular Shape Caps
Application

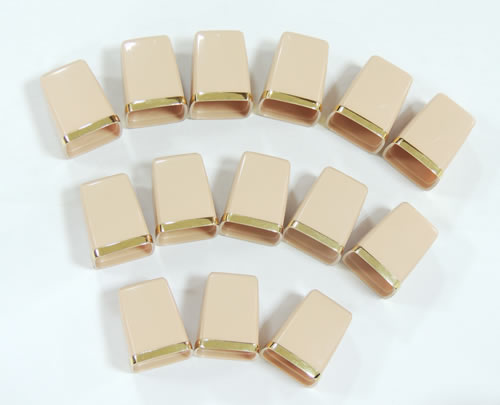

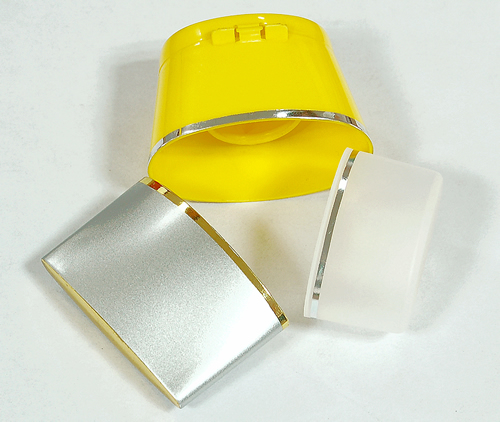

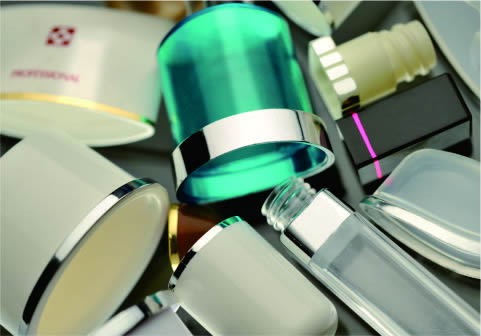

The machine is designed specially for stamping on different kinds of plastic/metal wine caps, cosmetic lids and other irregular/regular caps.
Specification:
Speed:15-28pcs/min
Diameter:15-50MM
Length:20-80mm
Power:380V, 3P 50/60Hz
Pressure:6-8Bar
General Description:
1. One station stamping machine

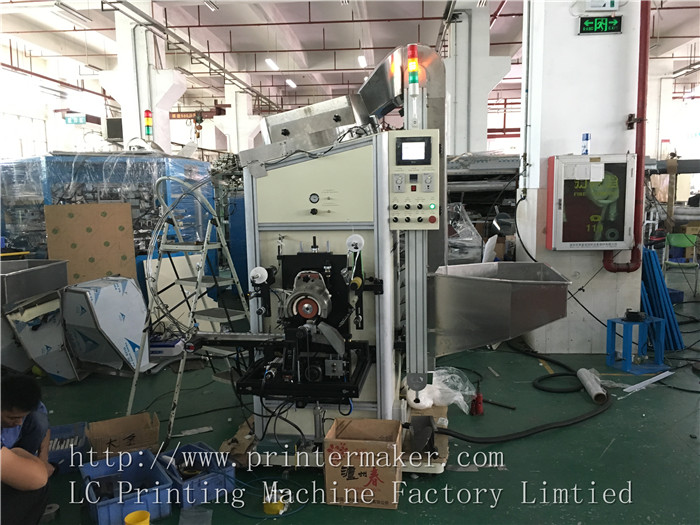

2. Automatic loading system as picture showing
3. PLC control and touch screen display
4. Will make a closure to close the front printing part
Application
The machine is designed specially for stamping on different kinds of plastic/metal wine caps,cosmetic lids and other irregular caps.
General Description
One station stamping machine
Auto loading system as picture showing
PLC control and touch screen display
Specificitions
Irregular Shape of Hot Stamping Machine .

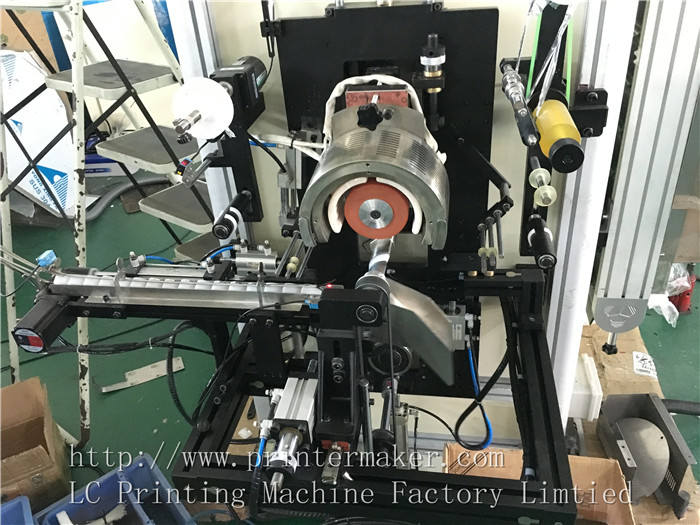

The flexible printing head and holding axis can move following the shape of the objects, which allows the machine to print parts of various shapes such as round, flat, oval or multi-faced parts. Nice printed quality: Well-proportion, highly shiny, no connection mark and low wastage rate.SMCpneumatic parts, promise of good quality. Small size, nice shape, light and sturdy.
This gold stamping press is applicable to stamp and form the contour lines on the abnormal bottle caps, featuring good mobility and uniform and polished stamps with no joints on the outward curved surfaces or corners. It has a high finished product ratio.
