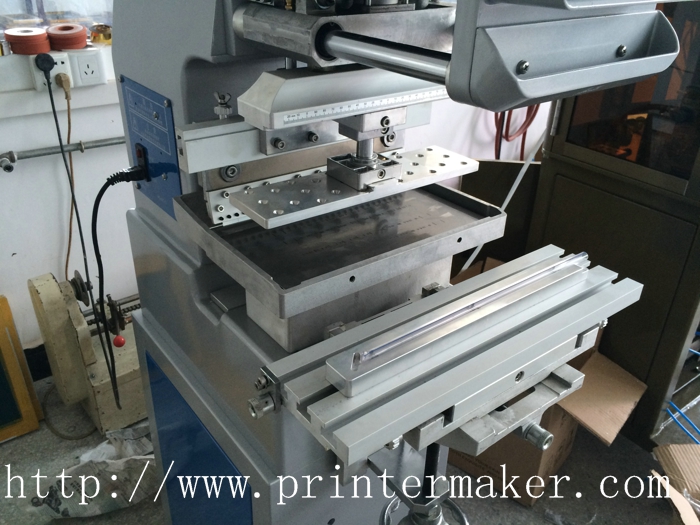

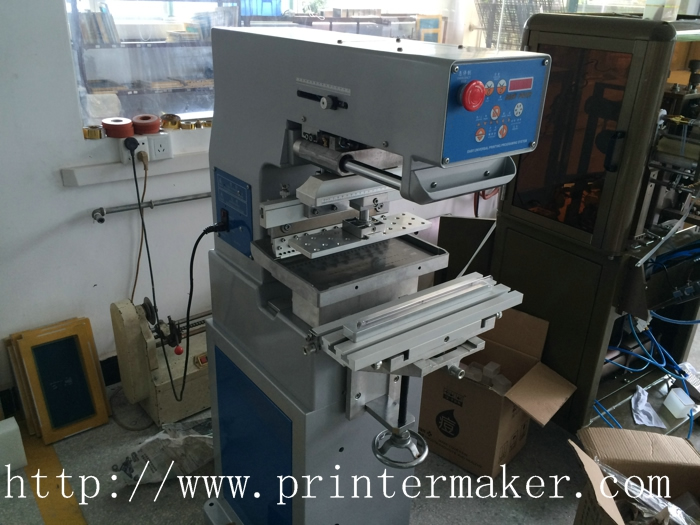

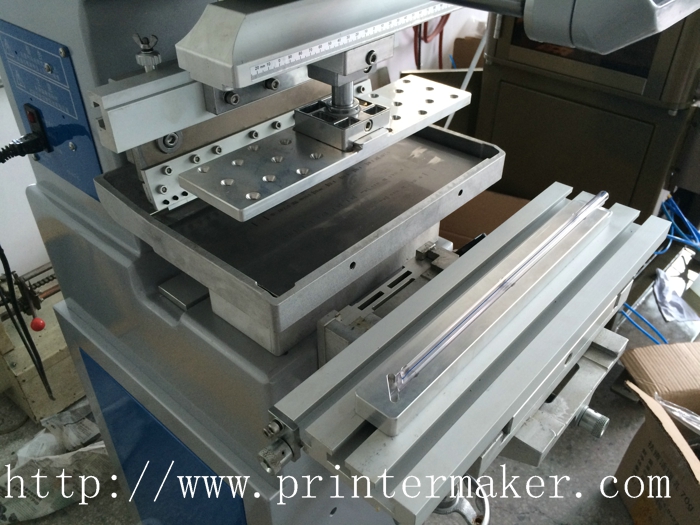

Catheter Duct Pipe Pad Printing Machine

Catheter Duct Pipe Pad Printing Machine

Specification
Standard Plate Size (mm): 150*200
Max. Plate Size (mm) :      200*350
Max. Printing Diameter(mm): 150×300
Max. Pad Stroke (mm)   :     80
Printing Pad Offset Angle: 360°
Work Table Offset Angle  :      5°
Max. Height of Workpiece (mm): 300
Printing Pad Pressure:          5 Bar
Max. Printing Seed (Cycle/Hour):1650
Compress Air Pressure (bar): 5～7
Air Consumption (L/Cycle) 1.73
Main Supply (1ØACV)        110V/220V±10%
Power Consumption (W):        30
Machine Size L*W*H (cm): 94*720*141
Net Weight Approx (kg) :      205
Packing Size L*W*H (cm): 115*770*160
Gross Weight Approx (kg)  : 260
