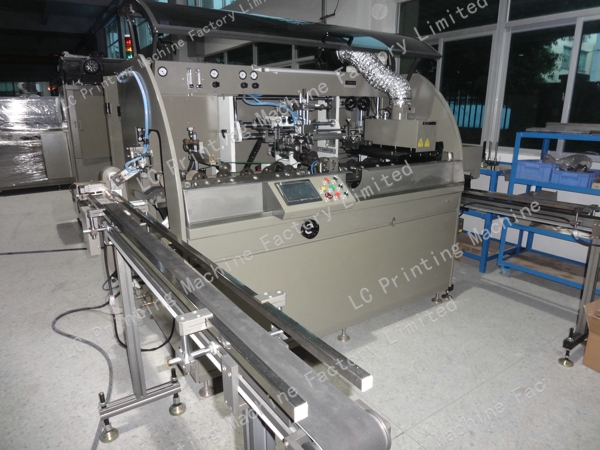

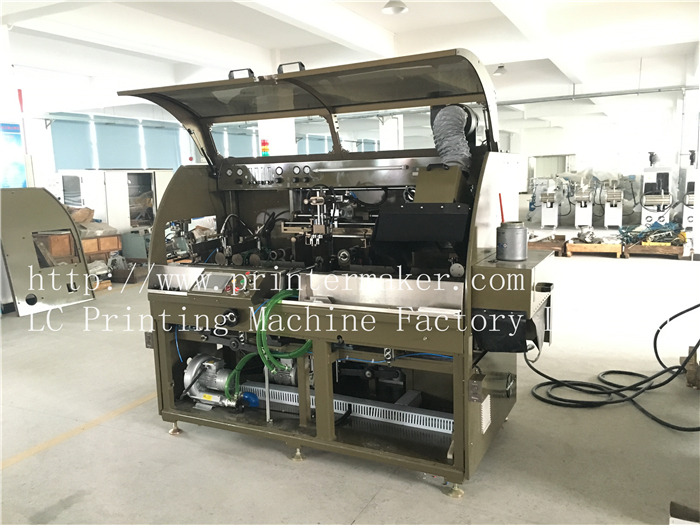

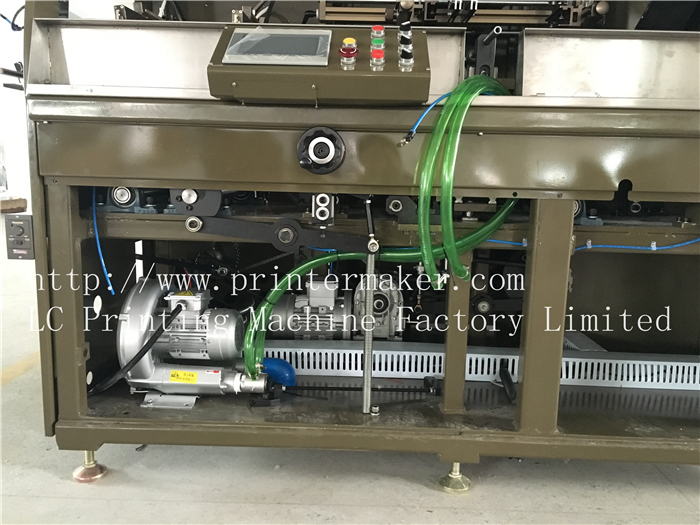

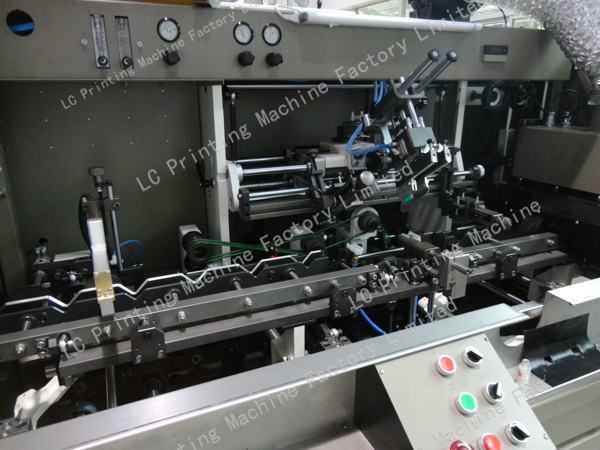

Automatic UV Screen Printing Machine-Mechanically Driven
|
Model: S-101M
Categories:
Automatic Screen Printing Machine
»
Description:
Mechanical Driven Automatic UV Screen Printing Machine (For Round,Oval,Conical,Flat Shape Bottles, Cups and Containers)
Parameters:
1.Printing Speed Round: 4000pcs / hr Oval 5000pcs / hrParameters:
1.Printing Speed Round: 3500pcs / hr Oval 4000pcs / hr
2.Printing Size: (φ100X280mm)x(260-200mm)
3.Printing Length: Oval Width 25-100mm Length 25-280mm
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
8.Power Unit:380V/3P 50Hz 7KW/220-240V,3Phrases,7KW.

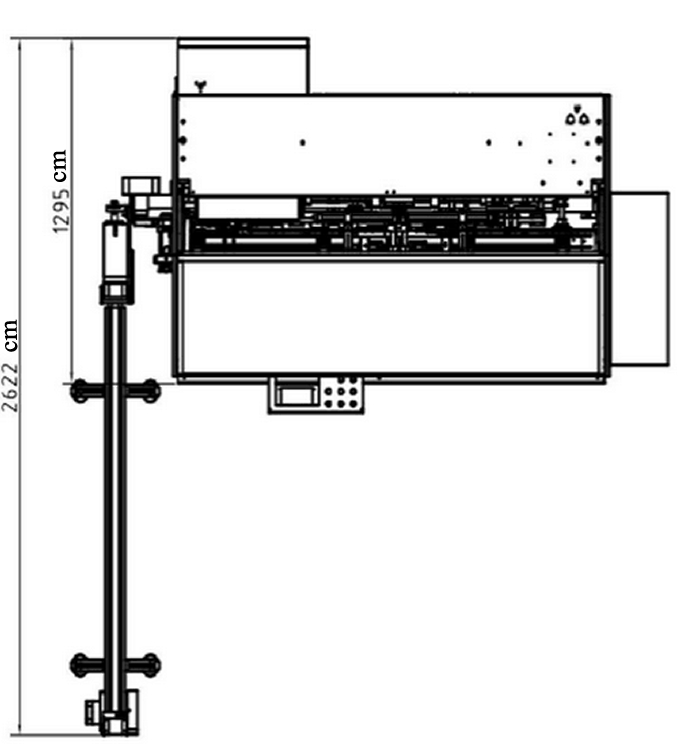

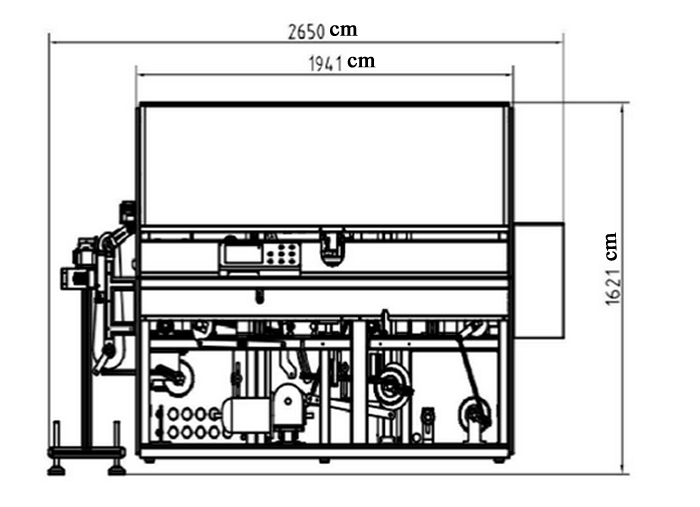

10.Machine Dimension:2580×1580×2100mm
11.Packing Size:291*167*187CM
12.Net Weight:1000KG
13.Gross Weight:1200KG
Cam-linkage mechanisms driving mode combined with PLC control system effectively guaranteeing the reliability and efficiency.
Reliability:
Main components from Rexroth, Schneider, SMC, Mitsubishi etc. other parts machined in-house by CNC directly from CAD. Frame & structures made by high intensity aluminum alloy and stainless steel.
Easy Operation:

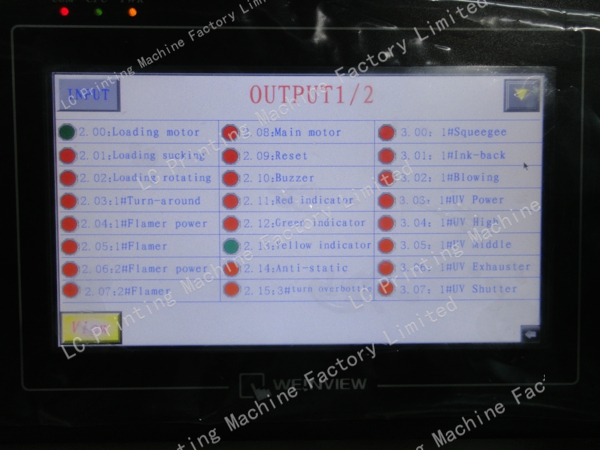

With PLC control system, touch screen interface. Fast setup & quick tooling change over.
Printing Management:
Adopted with No-object no printing system, auto counter, faulty alarm device.
Parameters:
1.Printing Speed Round: 4000pcs / hr Oval 5000pcs / hrParameters:
1.Printing Speed Round: 3500pcs / hr Oval 4000pcs / hr
2.Printing Size: (φ100X280mm)x(260-200mm)
3.Printing Length: Oval Width 25-100mm Length 25-280mm
4.Compressed Air: 0.6MPa
5.Lp Gas:0.15MPa
8.Power Unit:380V/3P 50Hz 7KW/220-240V,3Phrases,7KW.
10.Machine Dimension:2580×1580×2100mm
11.Packing Size:291*167*187CM
12.Net Weight:1000KG
13.Gross Weight:1200KG
Cam-linkage mechanisms driving mode combined with PLC control system effectively guaranteeing the reliability and efficiency.
Reliability:
Main components from Rexroth, Schneider, SMC, Mitsubishi etc. other parts machined in-house by CNC directly from CAD. Frame & structures made by high intensity aluminum alloy and stainless steel.
Easy Operation:
With PLC control system, touch screen interface. Fast setup & quick tooling change over.
Printing Management:
Adopted with No-object no printing system, auto counter, faulty alarm device.
Options: General unit for round & oval bottles, antistatic device, flame treatment, UV/IR system, auto feeding system and other customizations due to order.
