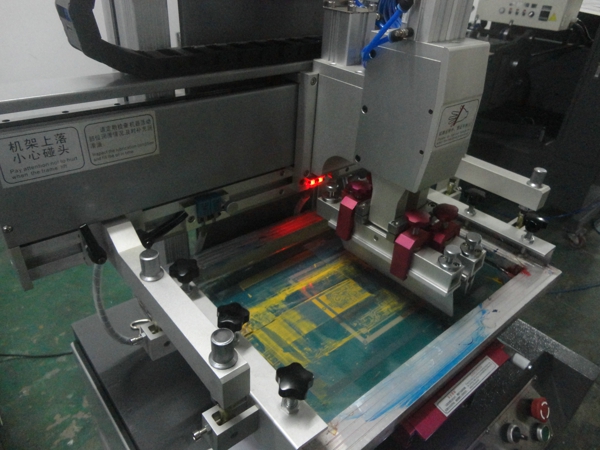

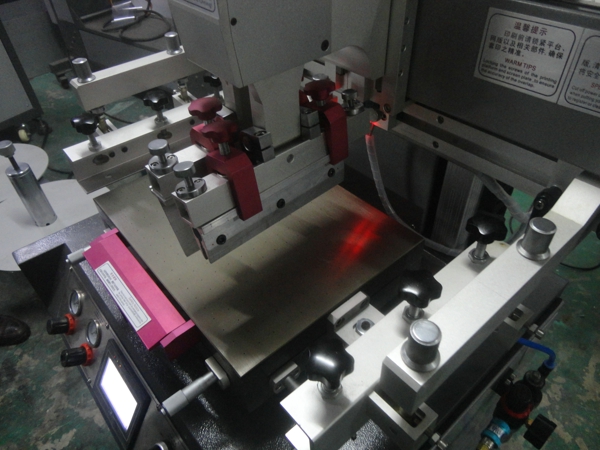

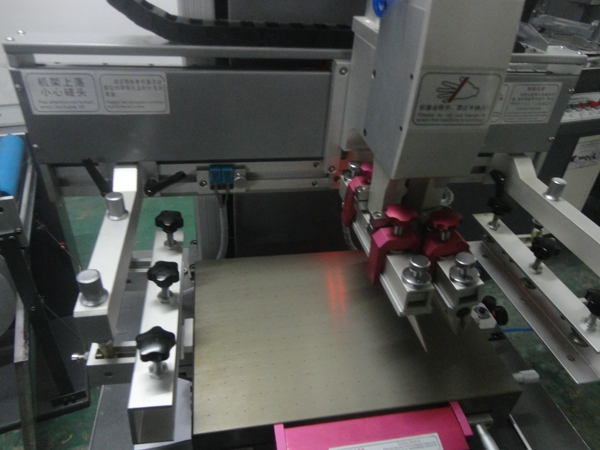

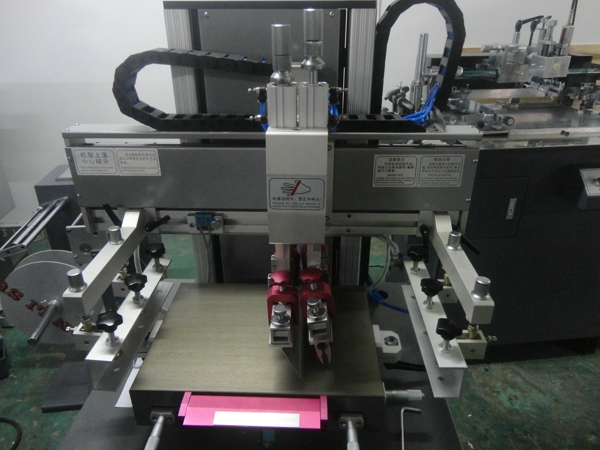

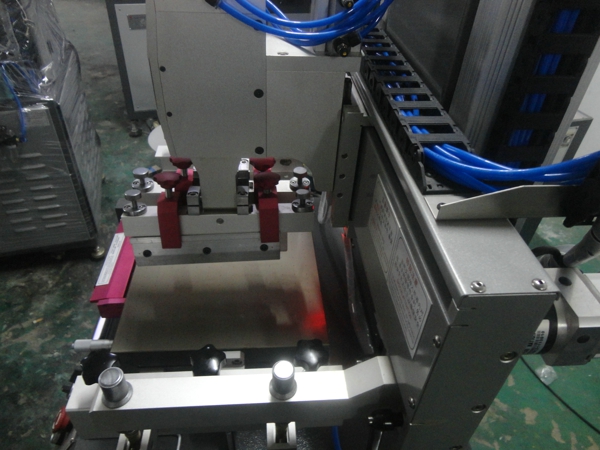

Touch Screen Panel Screen Printing Machine

PLC&Servo Control Flat Bed Screen Printing Machine for glass touch screen

Technical Parameter: NSP-2030A/B
Workbench area:      300mm*400mm
Max Printing Area:   200mm*300mm
Max Screen Size:     450mm*620mm
Tickness of Material: ≦40mm
Workbench Horizontal Precision: ±0.05
Overcolor Print Precision: ±0.01
Printing Pressure:     4.0-6.0Kgf/C㎡
Operation Air Pressure:0.3Mpa-0.5Mpa
Source Power:          1.5kw
Rated Voltage:          380V
Printing Speed:          960PCS/Hr
Dimension(L*W*H): 700*650*1570mm
Weight:                     250KG

Features:
1.Printing Transmission adpots moter drive,hight prcision linear lead rail and synchronous belt drive,movement sensitive,speed equality and can be adjusted.

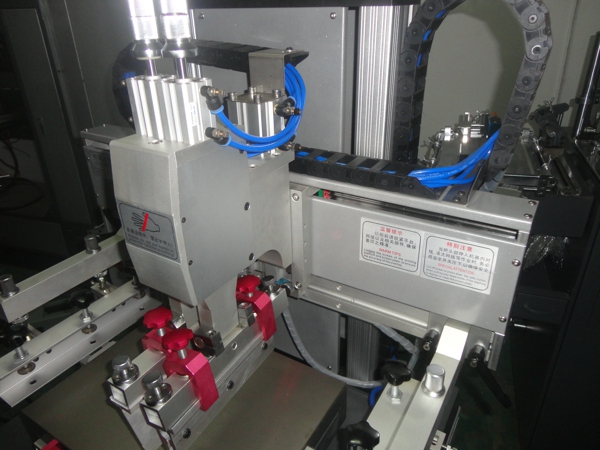

2.The up and down of machine arm is driven by moter,frequency control,move steady.
3.The printing blate and ink-return blate with a airpressure adjusted device and can rugulate printing thickness.
4.Vac-sobing to fix printing stocks.

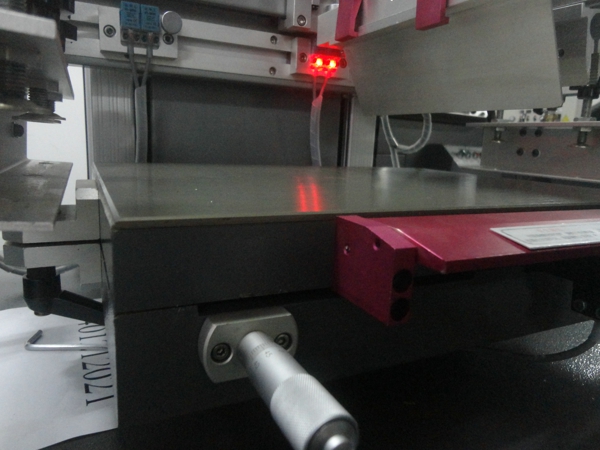

5.With a up and down,left and right,front and back vernier device very convinient for register.With a safty device ,safe and reliable.

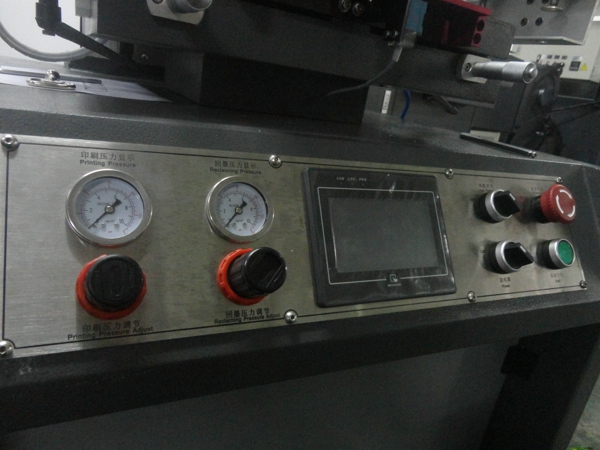

6.ECU cebtralized control by the microcomputer,easy to operation,flexible and convinient for maintenance.

This machine is fitting for all those products which request of high print precision such as glass touch screen for mobile phone,PVC film, control pannel, paperboard printing of cigarette,wine,gifts and cosmetics package;printing of trademakerk,wall calendar,oil painting,computer keyboard,transfer paper,label-bond,credit card etc.
