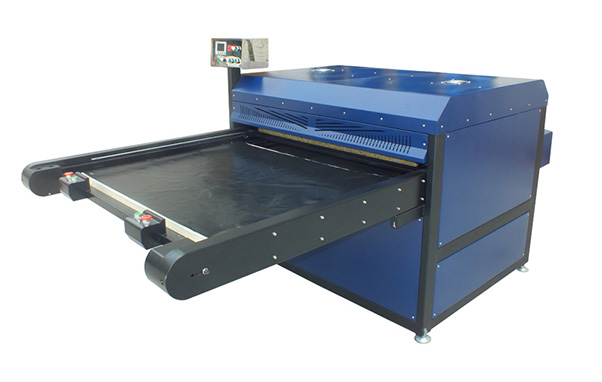

Single Side Two Station Large Format Automatic Heat Press Machine

Single Side Two Station Large Format Automatic Heat Press Machine

EXW GuangZhou Price:

Description:
Two working tables designed at one side of the machine, when the printing finished the tables rolls out while another one will roll into the machine for printing automatically. Two working stations take turns to do the printing. And this machine has 2 cylinders.

Feature:
♦ Two work tables, single station
♦ Automatic, large format
♦ Digital Temperature & Time Control
♦ Automatic Alarm
♦ 1 year warranty on entire press
♦ Wooden Package

Specification:
♦ Machine Type: Automatic, Double Station
♦ Platen Size: 32"x40"/40"x48"/40"x64"
                   (80x100cm/ 100x120cm/120x170cm)
♦ Controller: GY-06 Digital Time & Temp. Control
♦ Printable Articles: Up to 20mm Thickness
♦ Air Compressor Required: Yes
♦ Voltage: 220V 1phase/ 220V 3phase/ 380V 3phase
♦ Power: 5.1KW/ 7.5KW/ 12KW
♦ Time Range: 0-999 sec.
♦ Maximum Temp: 225 C
♦ Temperature Accuracy: ±0.5%

Heat Platen Test:
Each Single Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.

Quality Control on Finished Machine:
All heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2) Keep the temperature stay at 200 degree Celsius for at least 20 minutes

Package:
All the machines are packed in wooden package and provide with manual.


Quality Control on Finished Machine:
All heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2) Keep the temperature stay at 200 degree Celsius for at least 20 minutes

Application
Especially for Large Size cloth, banner, also for T-shirt, Puzzle, Mouse Pad, Metal Board, Fridge Magnet, Coaster, Slipper, Bag, Cushion etc
