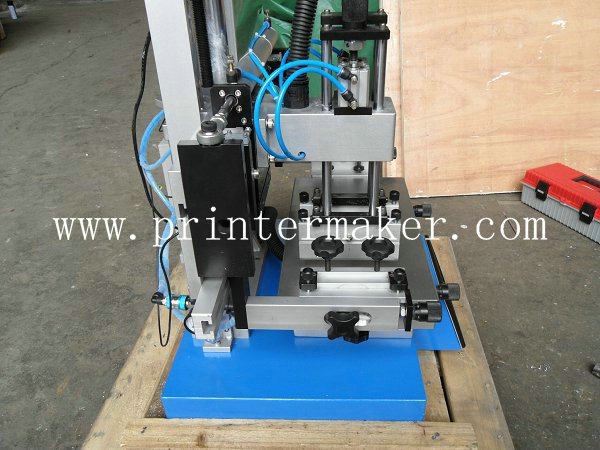

Mini Flat Screen Printing Machine with Vaccum

5:Transeversa stroke: 350MM

5.Maximum screen frame size: 50*30cm

12:Gross Weight: 175KG

13.Volume weight:180KG

Model:MSP-2545
1.Print area:200x400mm
2.Max height of printing products: 100mm
3.transeversa stroke: 450MM
4.vertical stroke: 120MM
5.worktable size: 250x450mm
6.Printing speed:1200pcs/hour
7.power:110V/200V 50/60Hz 50W
8.Machine Size:93x74x87CM
9.Packing size: 85*60*108CM(L*W*H)
10.Net Weight:130KG
11.Gross Weight: 170KG
12.Price:1600USD

Model:MSP-2550
1.Print area:200x450mm
2.Max height of printing products: 100mm
3.transeversa stroke: 500MM
4.vertical stroke: 120MM
5.worktable size: 250x500mm
6.Printing speed:1200pcs/hour
7.power:110V/200V 50/60Hz 50W
8.Machine Size:93x74x87CM
9.Packing size: 85*60*108CM(L*W*H)
10.Net Weight:140KG
11.Gross Weight: 180KG
12.Price:1800USD

Features:

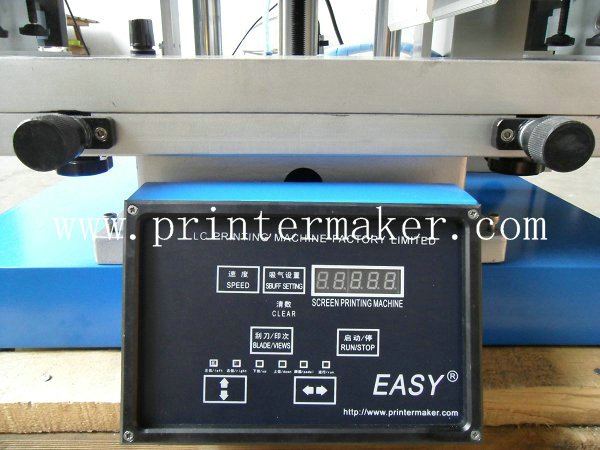

1. SCM IC coordinate light touching panel to complile action programming
2. Auto 4-digit counter built-in, counting printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. distyle vertical constructure, high precision, steady operation

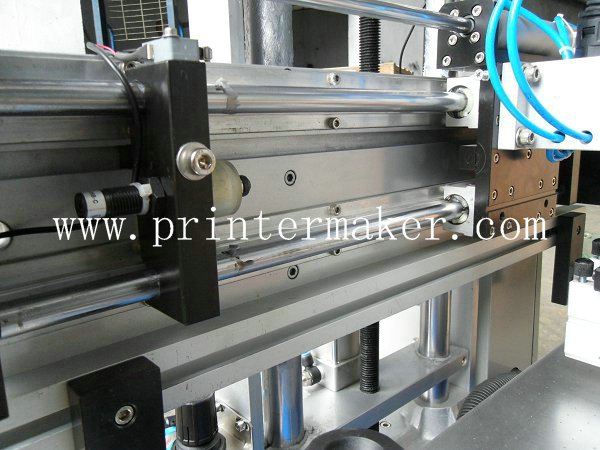

5. the transeversa stroke can be adjusted, spacing by Taiwan electronic switch
6. the angle of scraper and ink covering blades can be adjusted randomly

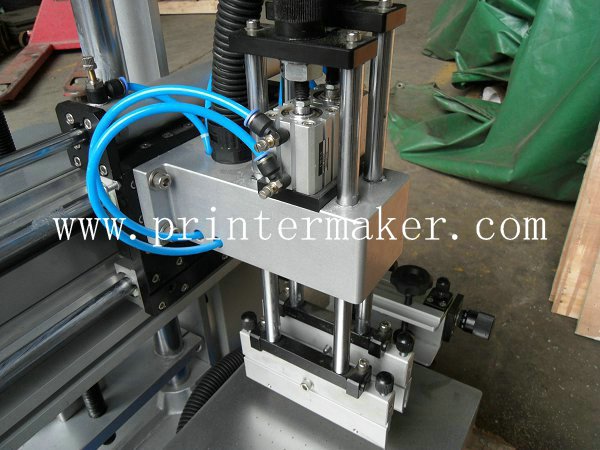

7. installing scraper constant pressure equipment to make sure pressure is steady when printing

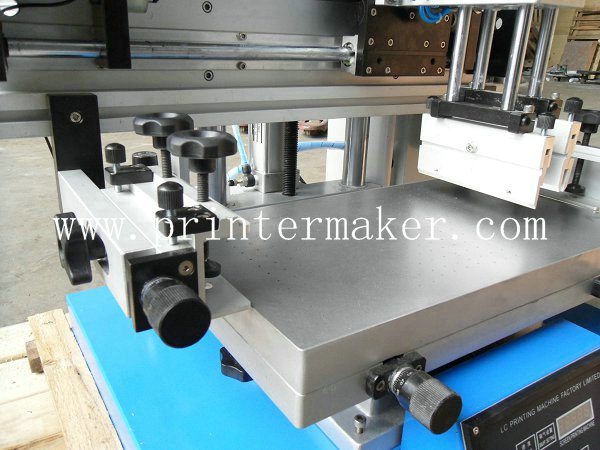

8. you can regulate work-table back and forth or right and left, and then fastening it
9. you can regulate screen frame back and forth, right and left or level orientatio

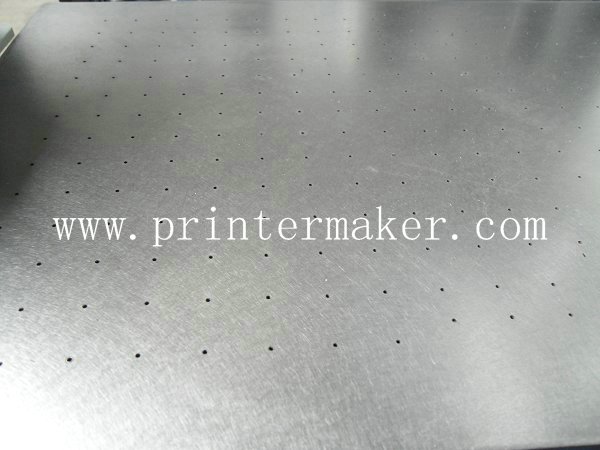

10. vacuum stainless steel worktable, it can absorb kinds of film products
11. installing CEC oil buffer on up and down, left and righ to avoid printing shock
12. The machine is running fastly, steably and lower noise.
13. Action model option: fully automatic | semi-automatic | manual
14. Start-up method:panel | foot switches
15. scraper pressure controller:by pressure regulating Valve
16. vertical driving style: pneumatic
17. transeversa driving style: pneumatic

Application:
The mini flat screen printing machine with vacuum table is adopted vacuum genertator to bring strong adsorptive power without noise. It replace manual screen printing, and solve the problems of un-stable printing quanlity, and slow printing speed by manual screen printing. The machine is small with quick speed, stable function, high precice, it can be made up of screen printing production line in small workshop. It’s special suitable for printing logo on the surface of PVC, paper, nameplate and kinds of film.
