Products

Hot Stamping Machine for Round Caps

Model: 6BC-150-Caps

Categories: Hot Stamping Machine »

Description:

Name:Hot Stamping Machine for Round Caps
Model:6BC-150-Caps
1:Max.printing size:Φ40X70mm
2:Speed(Pieces/minute):60pcs/Min.
3:Machine size(LxWxH):117X75X160cm
4:Net Weight:380kg
5:Air Pressure(bar):5-7bar
6:Power: 220V/50Hz 2kw
7: Motor Rate:1600W
8: Up and Down Pressure: 117kg

9: Packing Szie:122*82*170CM

10.Gross Weight:310KG

11.New Weight: 280KG

Model:6BC-400-CAPS

1:Max.printing size:Φ100X70mm;
2:Speed(Pieces/minute):50pcs/Min.
3:Machine size(LxWxH):117X75X160cm
4: Hot stamping stroke: 360MM
5:Air Pressure(bar):5-7bar
6:Power: 220V/50Hz 3.5kw
7: Motor Rate:1800W
8: Up and Down Pressure: 117kg
9: Packing Szie:162*92*170CM
10.Gross Weight:420KG
11.New Weight: 360KG

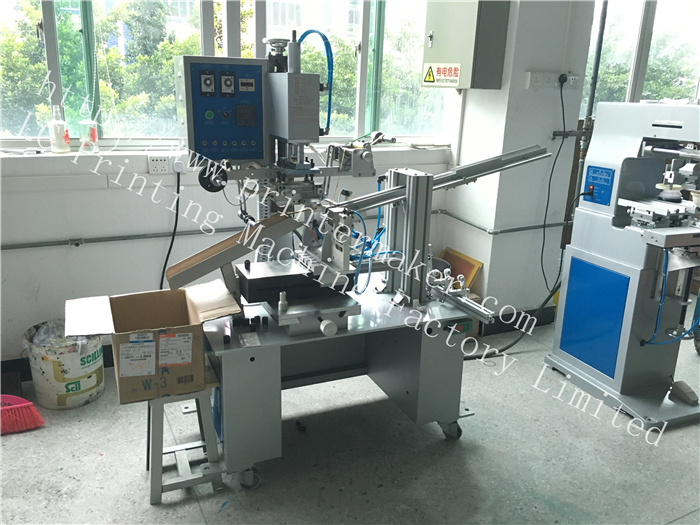

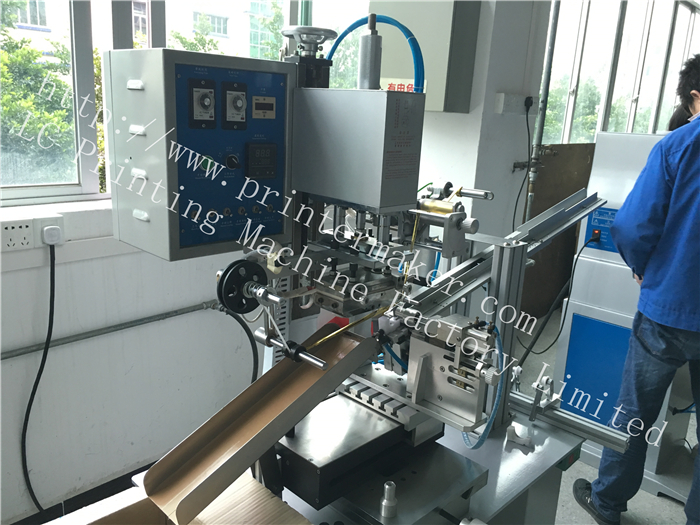

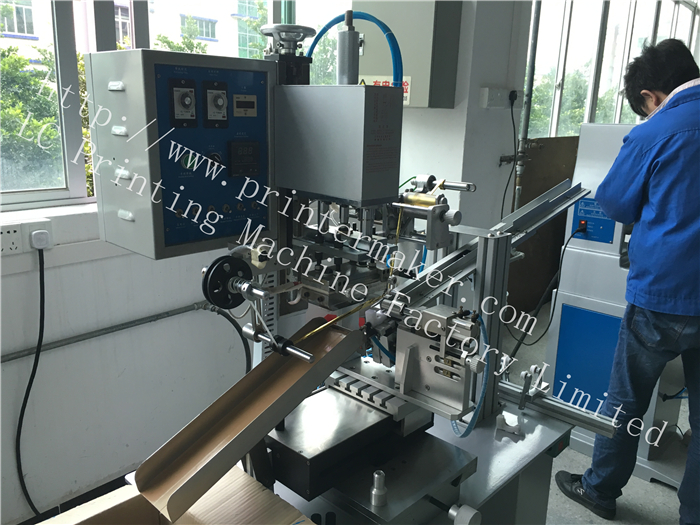

Hot Stamping Machine model 6BC-150-A for Round Caps is reformed on a basis of 6BC，which makes greater improvements on the operations, appearance, technical performance, etc.; which has increase the loading&unloading grooves in watering shape; which is equipped with pneumatic control to save labour and show the high speed& performance. It will be used to hot-stamp the round caps.

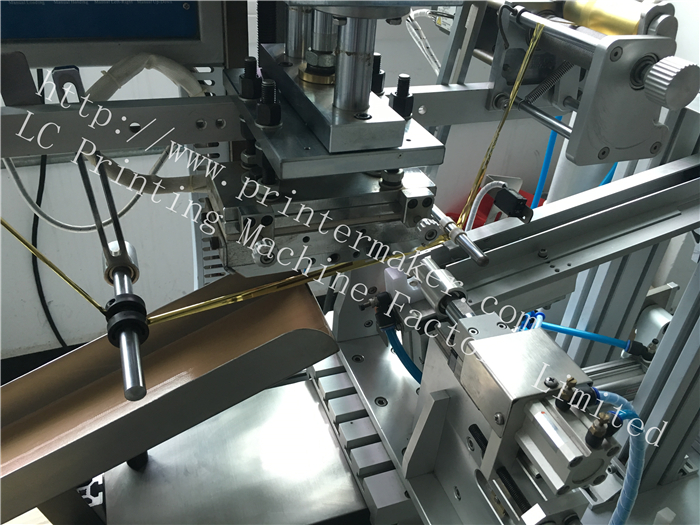

Hot Stamping Machine for Round Caps adopts the rail propping device and has such features as bearing high pressure&high precision of sliding. It also adopts sloping feeder of disparting the materials to reduce the friction of the caps. Meanwhile, the machine is controlled by pneumatic parts, which will work stably.It is very convenient to change the toolings and easily maintain for the circuit is controlled by the relay. Besides, it have such features as high speed, good performance, safety operation, No Caps no foiling, low consumption and high efficiency.And it is very easy to operate it.

Hot Stamping Machine for Round Caps
