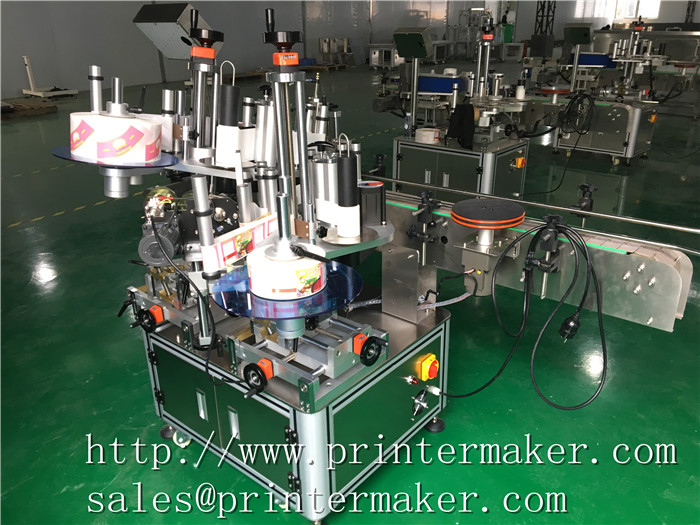

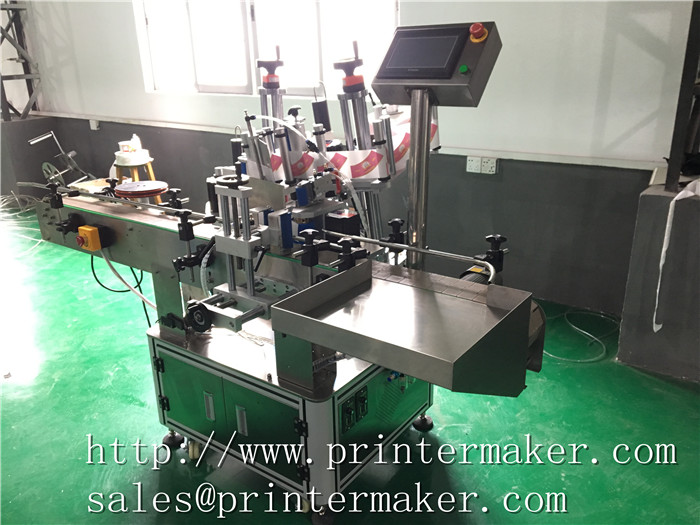

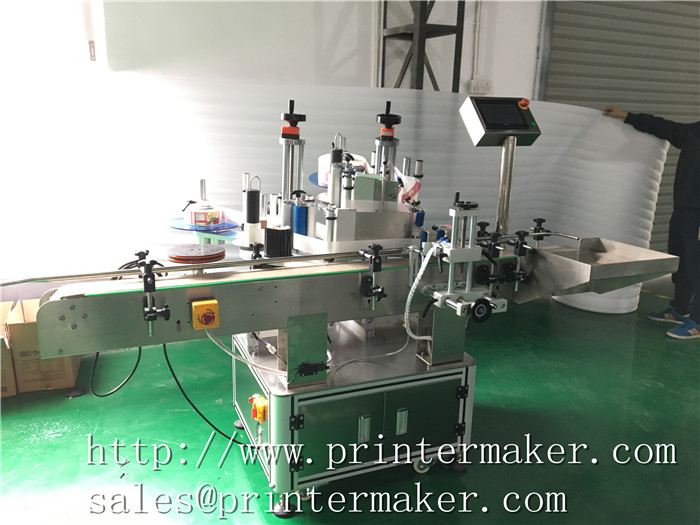

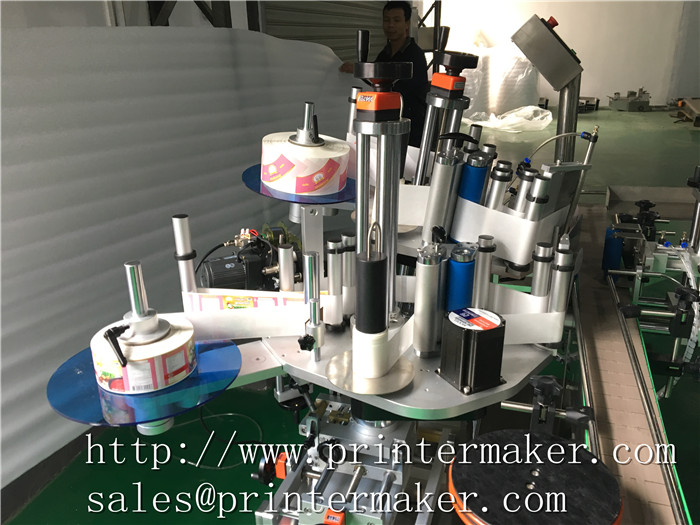

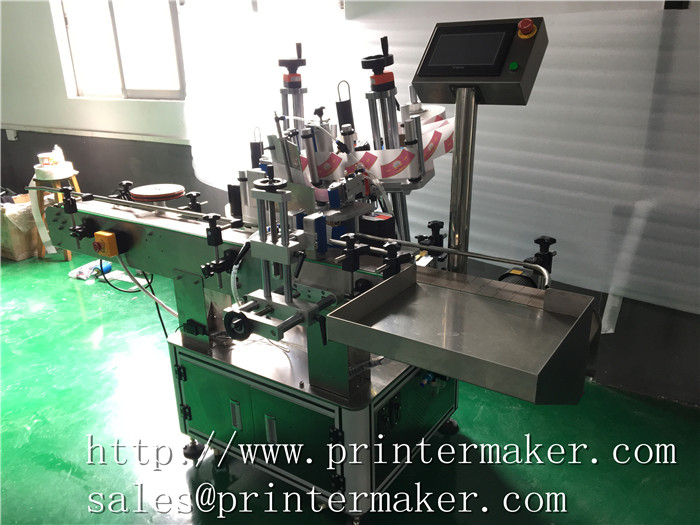

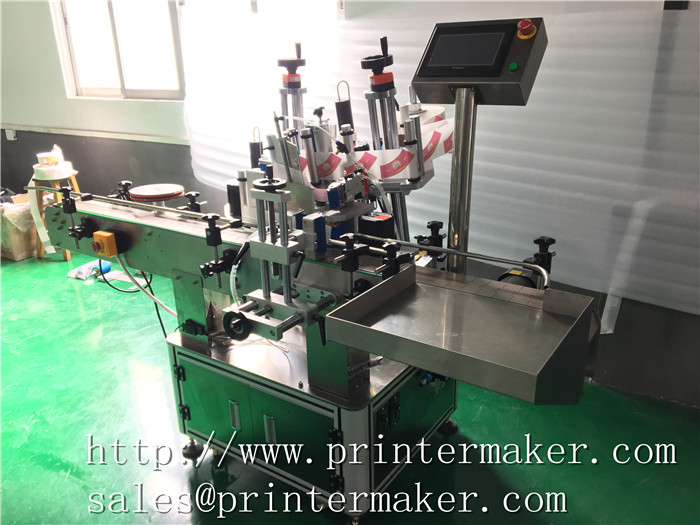

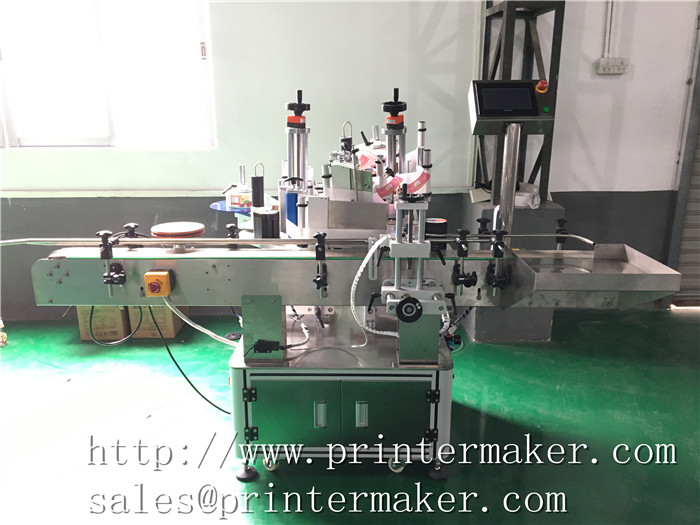

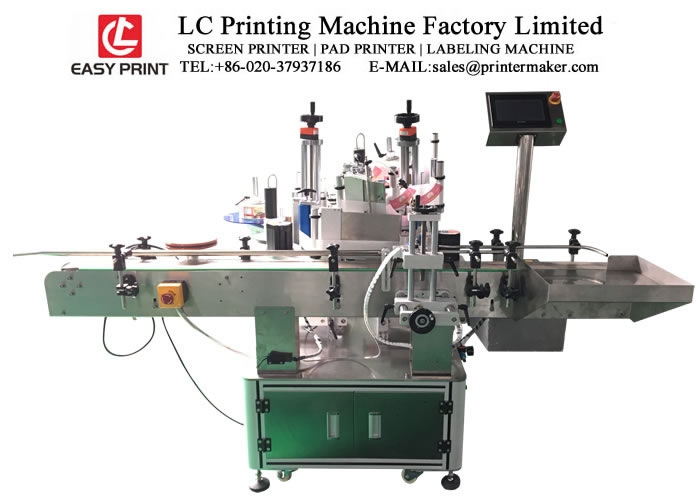

Automatic Labeling Machine for Bottles Side and Top Combination

Automatic Labeling Machine for Bottles Side and Top Combination

It's applied to label the self-adhesive label on various flat surface products, as books , file folders , cases , cartons , bags , etc.

This machine is widely used in electrical , pharmacy, foodstuff, beverage, cosmetic and chemical etc industries.

Features

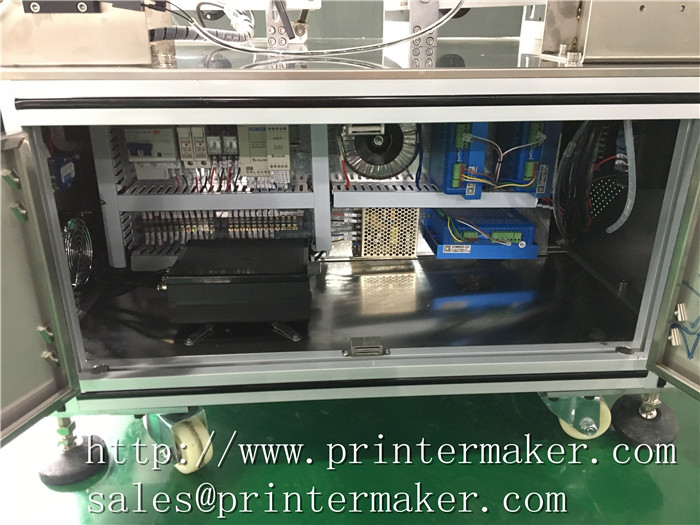

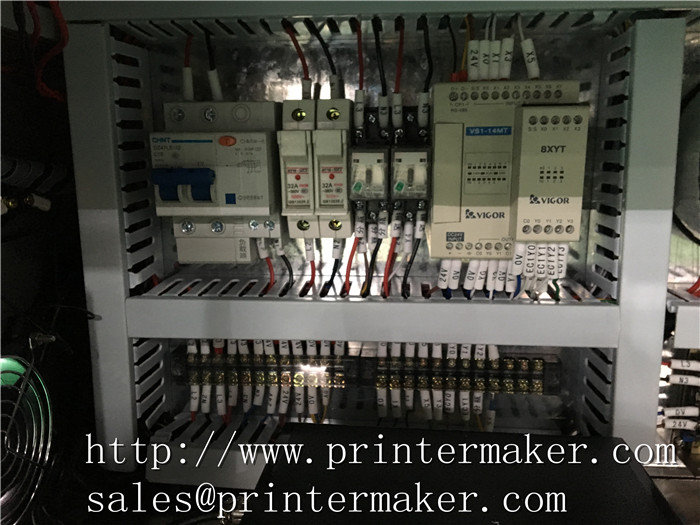

1.Adopt mature technology PLC control system, operation is stable and high-speed

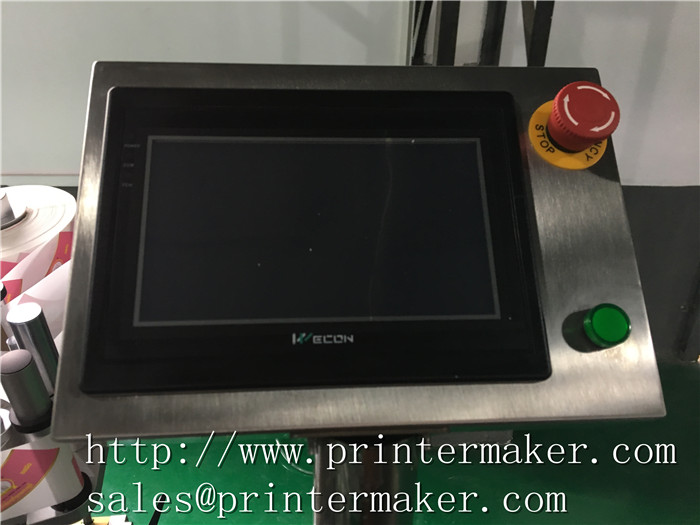

2.Using touch-screen control operating system, simple, practical, efficient;

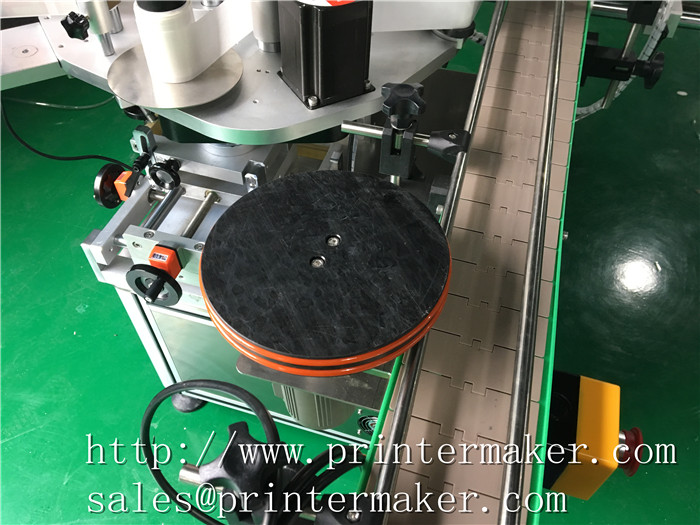

3.Adapt variety shape of object in top labeling;

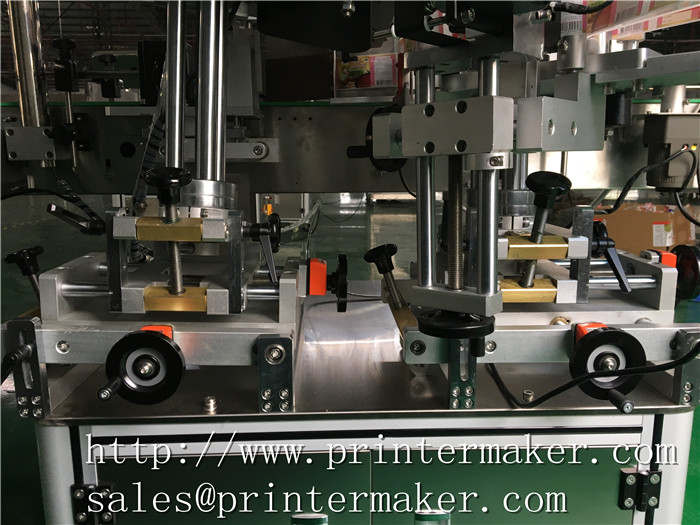

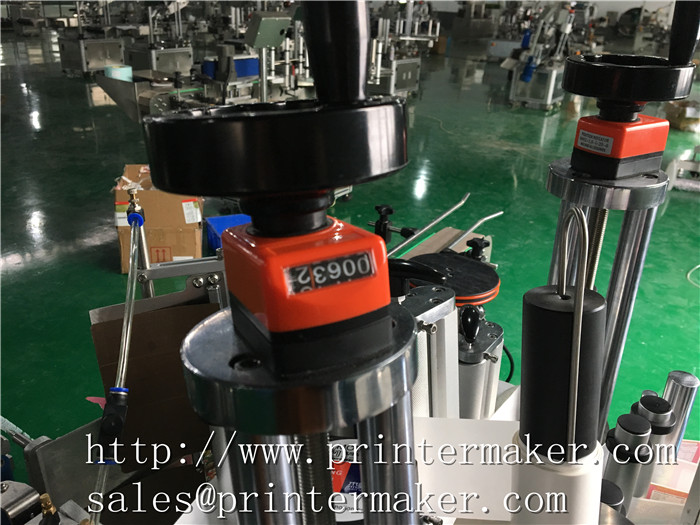

4.Screw adjustment to suppress body movements accurately;

5.Synchronization chain mechanism ensure labeling smooth and precise calibration;

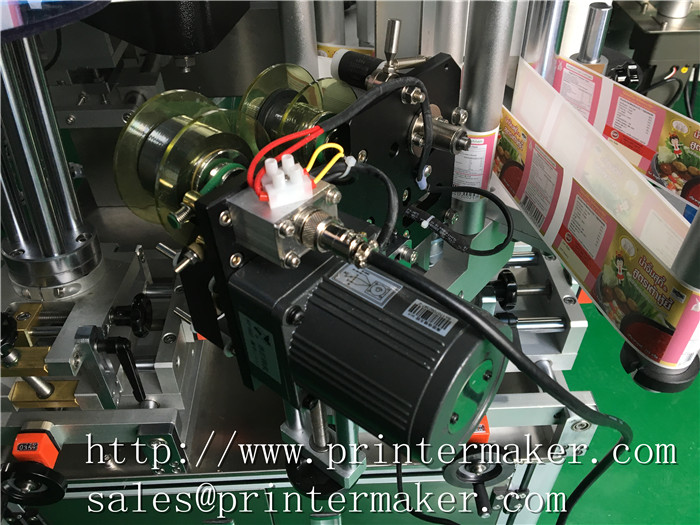

6.Advanced technology of pneumatic code system, print batch number and expiry clearly.

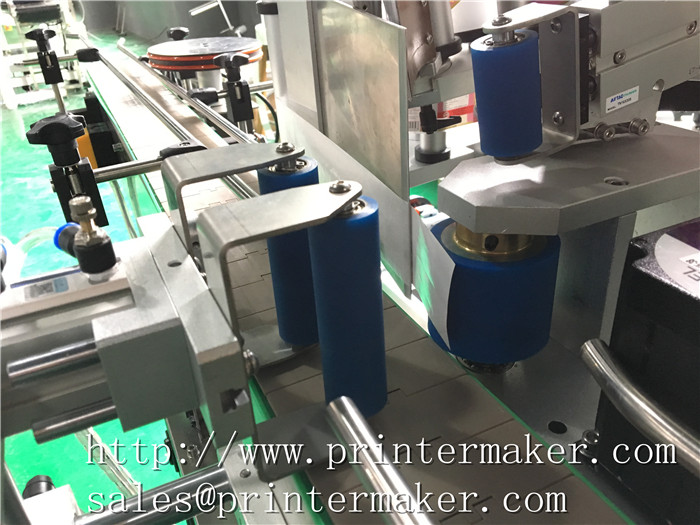

7.Transmission-type rolling bottles, make sure the labels attached more firmly;

8.Labeling transparent label without bubble and wrinkle;

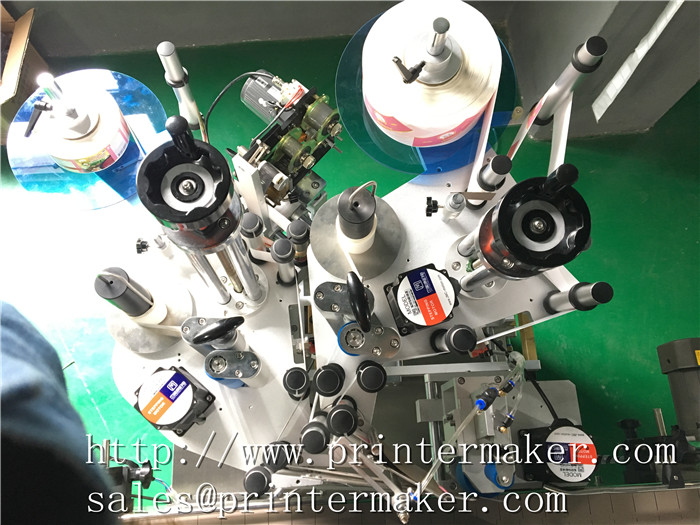

Flat Labeling Head

Specification

1.Label width: 20-150mm

2.Label length:6-250mm

3.Products Diameter:

Length: 40mm-400mm

Width: 40mm-200mm

Height: 0.2mm-150mm

4.Max Outside diameter of label roll: φ350mm

5.Inside diameter of label roll: φ76mm

6.Max Labeling speed: 200pcs /min

7.Accuracy of labeling:±0.5mm

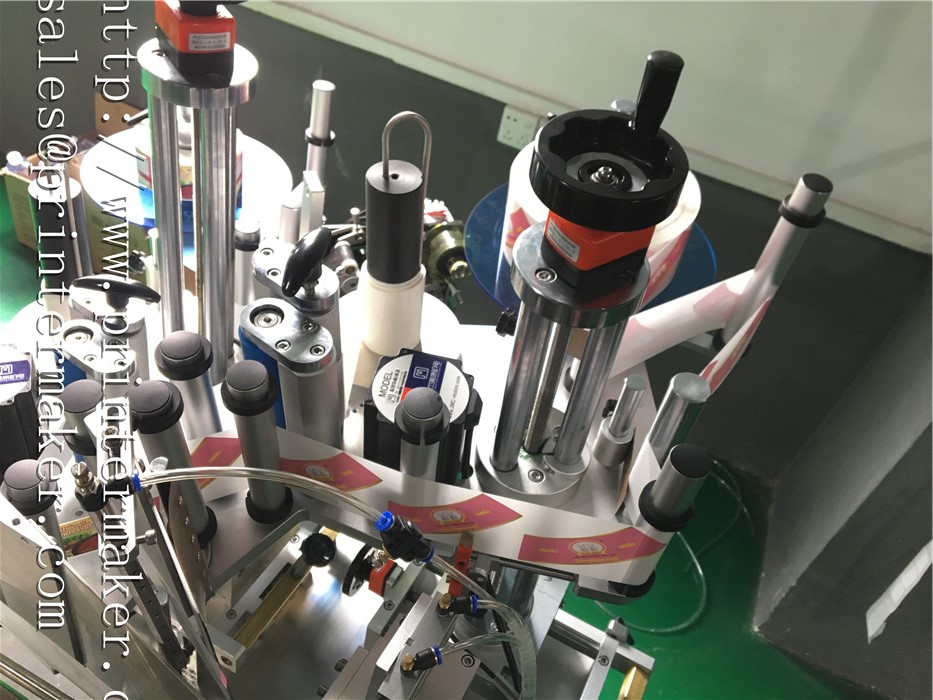

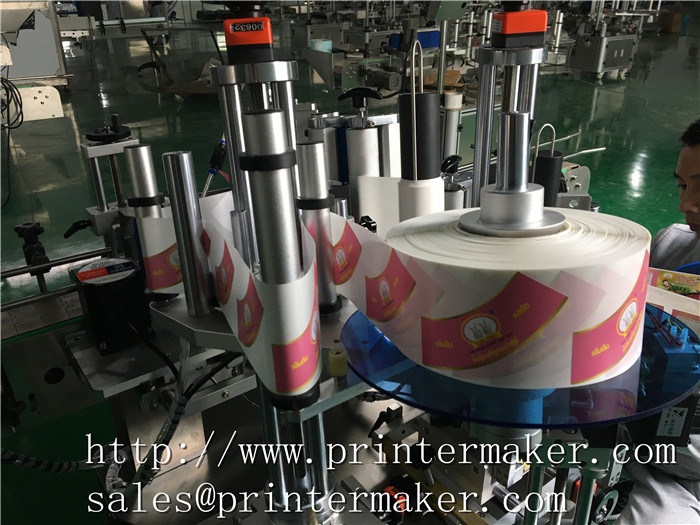

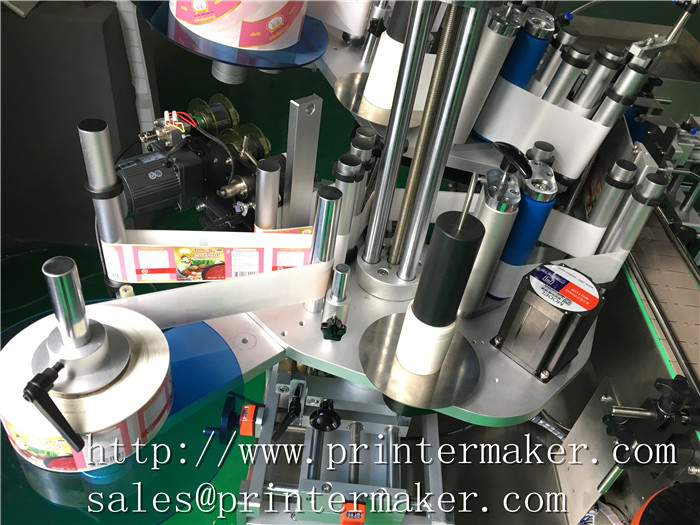

Side Labeling Head

1.Label width: 20-290mm

2.Label length:20-160mm

3.Products size:

Diameter: φ25mm-φ100mm

Height:25-300mm

4.Max Outside diameter of label roll: φ280mm

5.Inside diameter of label roll: φ76mm

6.Max Labeling speed: 60pcs /min

7.Accuracy of labeling:±1mm

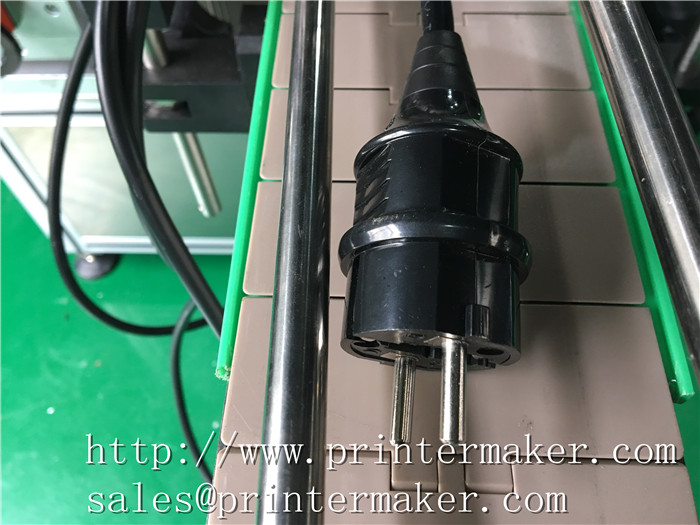

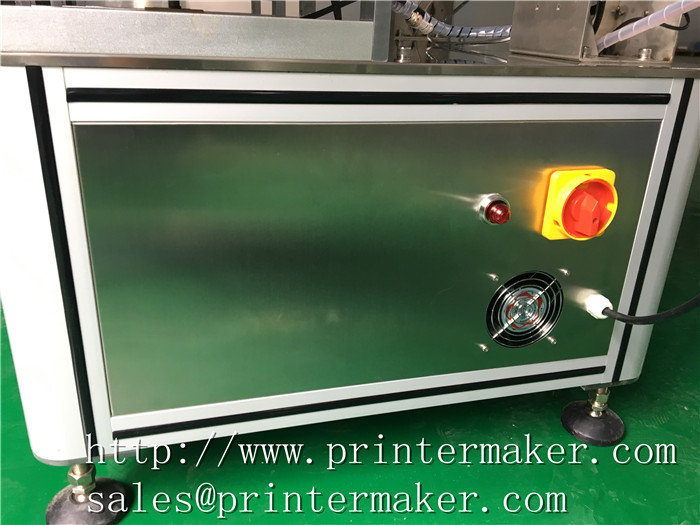

8.Power: 220V/110V 50/60Hz 900W

9.Machine Net Weihgt : 250KG

10.Machine Dimension: 1950mm x 1200mm x 1550 mm
