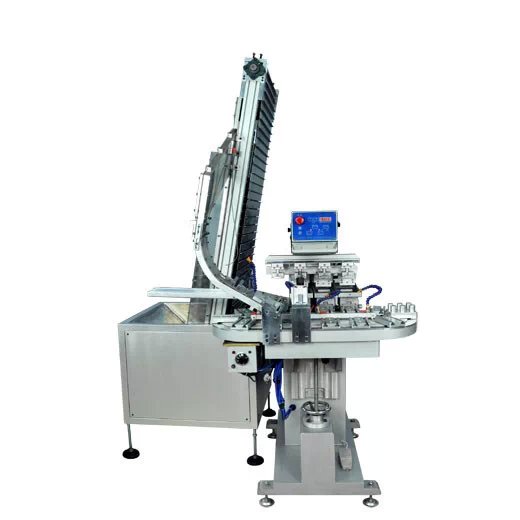

4 Colors Automatic Pad Printing Machine For Bottle Cap's Top--With PLC Auto Servo & Touch Screen Panel Control
Automatic Pad Printing Machine for plastic bottle caps with conveyor. It is featured by fitting all those bottle caps,lid cover etc in high working capacity and perfect printing quality. It is Fully Automatically feeding,flame treatment ,1-4 colors printing,air blower drying and auto offloading system as complete printing production line.
1:Max printing speed ----7200pcs/hour.
2: Plate area-- 100*250*0.5mm
3: ink cup diameter--90mm
4: Printing area: Diameter 5-60mm altitude: 5-30mm
5: Machine Gross weight--800kg
6: Machine size--1790*1190*2100mm
Automatic loading system 1720*1100*2200mm
7: Conveyor table with 18 pcs table, each table could hold 6pcs of caps for max. production.
1.1-color pad printer with ink cup and gear type rotary table conveyer worktable 1.4-color pad printer with ink cup and gear type rotary table conveyer worktable
2. PLC Touch Screen Control each function of pad printer for easy operation
3. PLC controls and auto servo control the loading/unloading system
4. Flame or corona treatment to the surface of bottle cover to improve printing quality and ink adhension.
5. Built-in Five digit auto counter.
6. High quality aluminum alloy is used to make structure solid and weight light.
7. Inking by ink cup, ink viscosity is stable and no need to add any solvents in 6 to 8 hours, no 8. Evaporation, splash, Instead, 50% saving; Good working environment retains.
9. CE safety hood is equipped to meet safety requirement.
10. Convenient ink cup installation and remove for durable use.
11. Duration time is adjustable to meet different requirement.
12. Extra function "twice inking, once printing "is designed for thicker ink film.
13. Available for maximum 4 colors printing.
14. Unique edge structure ensures clean ink scraping and produces clear and sharp printing image.
15. Quick Drying by auto air blower
16: Machine conveyor is with 18 stations, each station could hold maximum 6pcs of caps.
