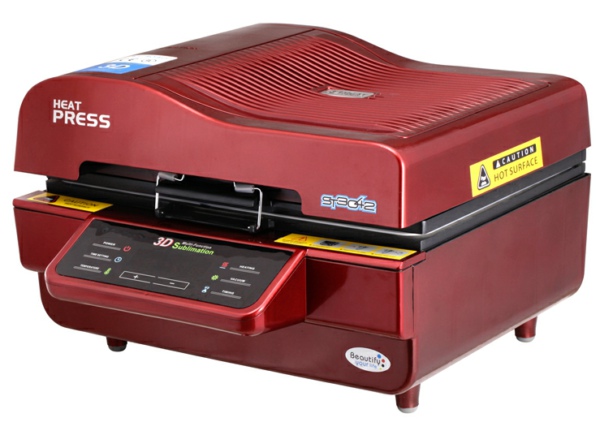

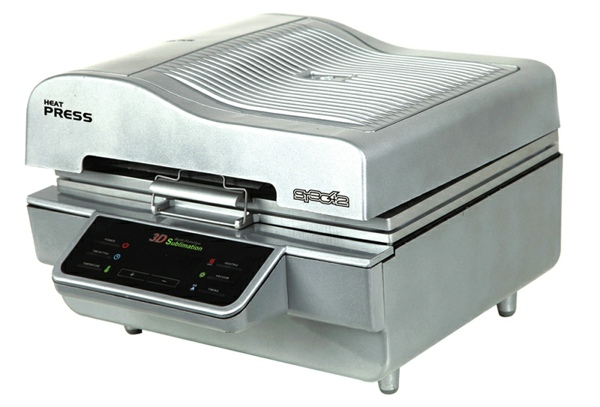

3D Sublimation Vacuum Heat Press Machine

Model: ST-3042

Price: USD500

Categories: Heat Press Machine » 3D Sublimation Machine »

Description:

3D Sublimation Vacuum Heat Press Machine

HOT SALE! 3D SUBLIMATION VACUUM MACHINE, HEAT TRANSFER MACHINE.

EXW Price:USD 500/PCS

Specification:
Voltage:220V/110V
Power:2800W
Transferring Area:300*420*110mm (11.8"*16.5"*4.3")
Inspiratory Time: 18S
Vacuum Pressure negative: 0.1KPA
Temperature Range: 0-250 degree Celsius
Time Range: 0-999S
Dimesion: 470*590*290mm (18.5"*23.2"*11.4")
Packing Size: 720*640*420mm (28.3"*25.2"*16.5")
Gross Weight: 25kg
Valume Weight: 40KG
Color:Red,Black,White

Parameter settings for Different Sublimation Blanks

Items	Quantity	Temperature	Time
MUGS	1pc	200 degree Celsius	360S
MUGS	12pcs	200 degree Celsius	480S
Phone Case	4pcs	190 degree Celsius	360S
Round Plates	1pc	200 degree Celsius	300S
Round Plates	2pcs	200 degree Celsius	360S
Photo Slate	1pc	200 degree Celsius	360S
Photo Slate	2pcs	200 degree Celsius	420S

Products Making:

3D Phone Case, Coated Mugs, Photo Rocks, Glass Frame, Small Wineglass, T-shirts, Mouse Pads, Plates, Ceramic Tiles, etc.

Features:

1. Safety

Software and hardware dual temperature control design, when one thermostat failure, the other thermostat automatically work, 15 minutes no operation, automatic shutdown, more secure and reliable. The machine has applied for CE \ UL safety certification

2. Efficient

The 300X420X110mm capacity reactor core design capacity, can put 12 mugs at one time, greatly improve work performance.

3. Delicate

Bump dots surface design, greatly improve the heat area, die-cast aluminum alloy heating, far infrared radiation coating, so that each point of the temperature of the furnace are uniform, to ensure that the image transfer more delicate and clear.

4. Simple The machine adopts special high impedance contingent, insulation materials, lightweight and safe, streamlined resistance heat strips, compact and practical internal structure, simple and stylish appearance.

5. Sharp move108 clamshell design, easy operation, significant space saving.

6. Highly intelligent

Work without any key operation, just gently close the cover, The machine

automatically aspirate, countdown and heat up. When the work is completed, automatically deflated, All you need is a simple process to place products and take out the products

7.Humane handling settings interface

for first time use, the temperature and time set-up process is very easy to understand and easy to learn.

8.Environmental protection

Efficient activated carbon air filter is installed in the machine, effectively to worry too much toxic and harmful gases generated in the transfer process, transported to the outdoors through the long catheter to ensure the health and safety of the operating personnel.

9. MultifunctionThe machine covers all the functions of the heat transfer machine, which can transfer mug, glass, crystal, acrylic, plastic, wood, metal, stone, cloth and so on .with various types of fixture, can do sublimation transfer on different size and shape of mugs. Transfer large format, delicate, clear, high color reproduction, far more than the traditional heat transfer machine.
3D Sublimation Vacuum Heat Press Machine
