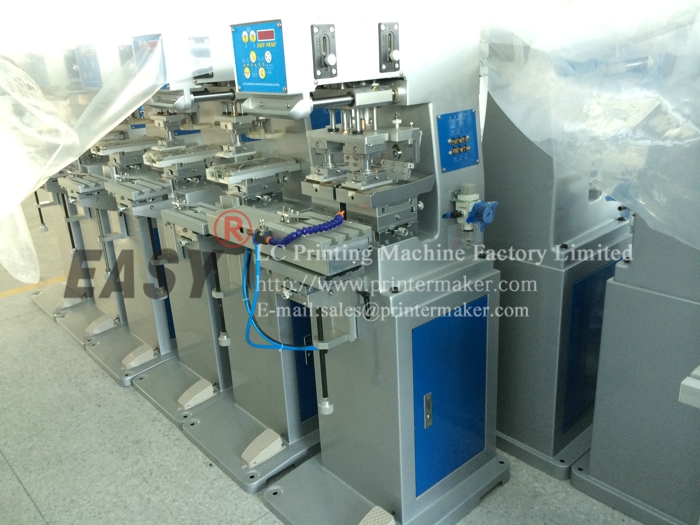

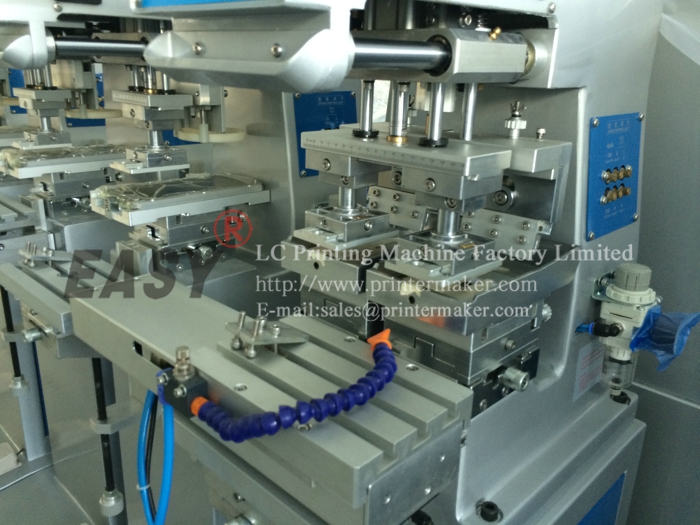

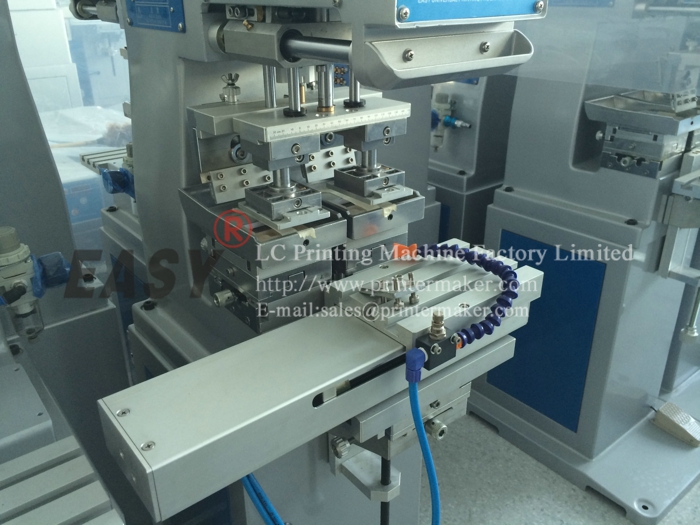

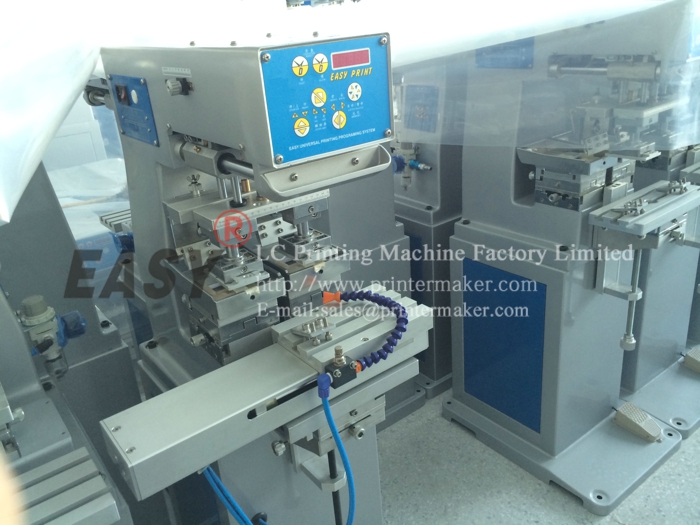

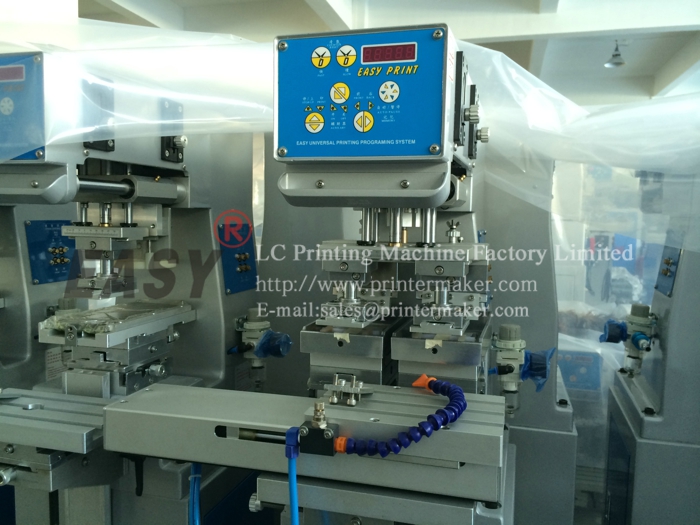

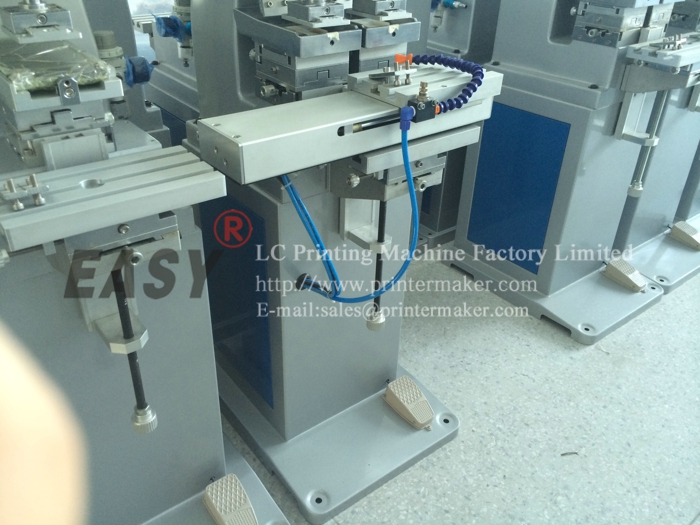

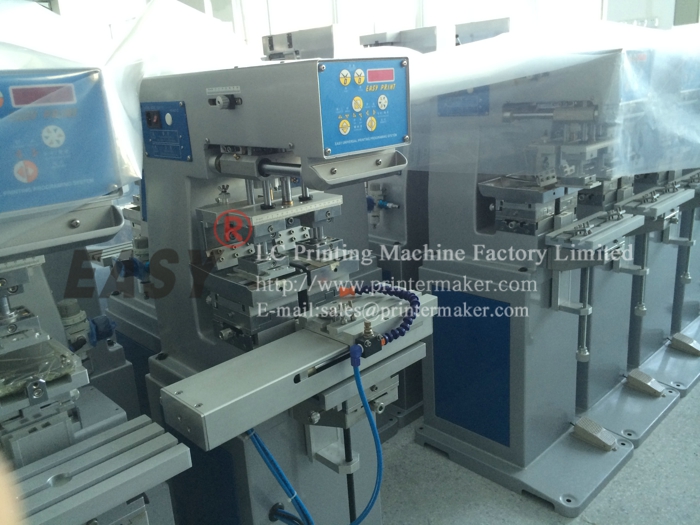

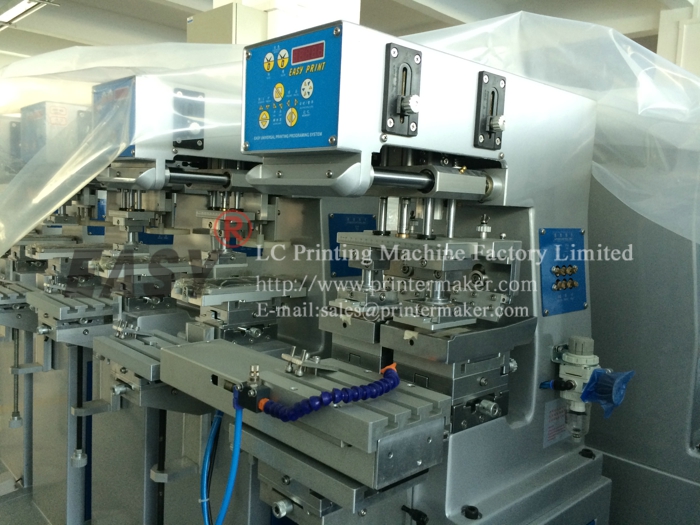

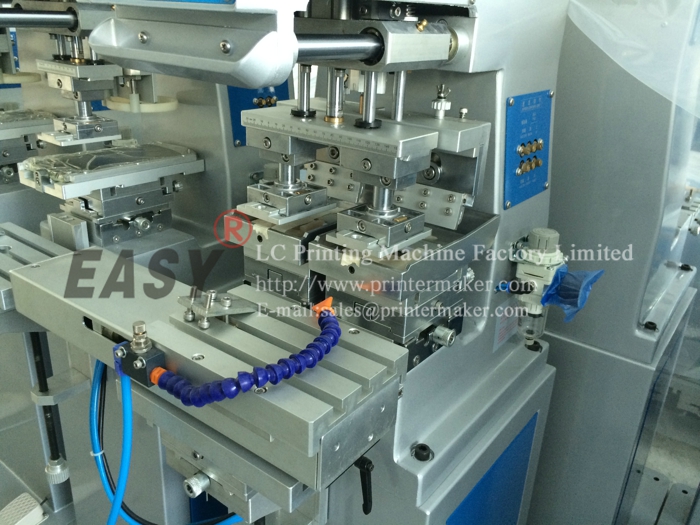

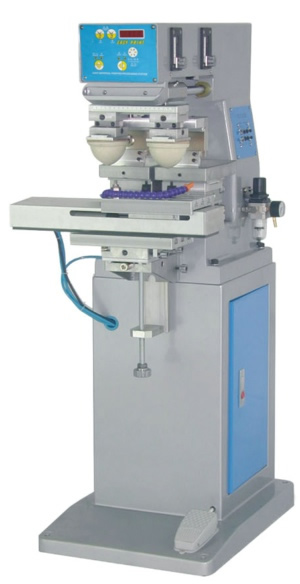

2-Color Pad Printer with Shuttle

Model: MINI-2SB

Categories: Ink Tray Pad Printing Machine »

Description:

2-Color Pad Printer with Shuttle
Specifications:
1.Max. plate size: 100x100mm；
2.Max. worktable area: 130x140mm；
3.Max. printing diameter: 90mm；
4.Max. printing speed: 900pcs/hr；
5.Air consumption: 110Litre/min(6bar)；
6.Printable colors:2;
7.Dimensions: 600*550*130mm；
8.Weight: 100Kg.

Advantages:
1.Two-colour pad printer with shuttle ;

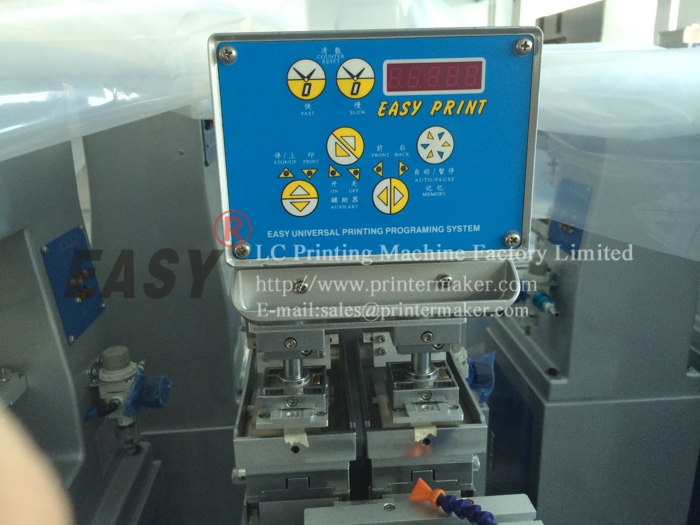

2.Each function controlled by microprocessor ;
3.Four-digit auto counter built-in;
4.Coin aluminium structure ensure solidity and durablity;
5.ink roller flooding for easy install/uninstall ;
6.Independent pad up/down stroke and speed asjustment;
7.Auto balanced doctor blade available for efficient ink scraping;
8.Printing speed asjustable to fullfil various requirements;
9."Inking twice, printing once" for better ink covering;
10.Able to sweep forward/backward without lowering pad to avoid ink drying at intervals;
11.One or two colours printable;
12.Two-colour ink tray base adjustable separately for overprint adjustment;
13.Drying with auto air blowing for easy colour registration;

Machine Fittings:
1. Two plates,
2. Two pads
3. Two blades
4. A tool box.

Application:Applicable for small round surface as well as flat surface printing, such as cell phone button,golf, toy, Pens, PC Mouse, Small electronic accessories etc
